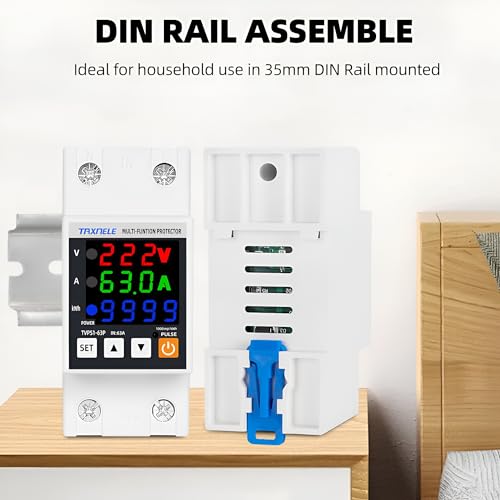

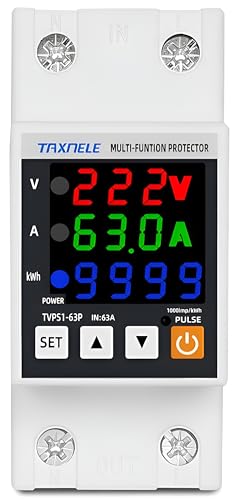

XPR3SS AVR-63S 63A Single Phase Energy Meter | DIN Rail Digital kWh Meter with Over /Under Voltage + Over Current Protection | Adjustable Voltage Protector Relay with Auto Recovery From Overload

Features

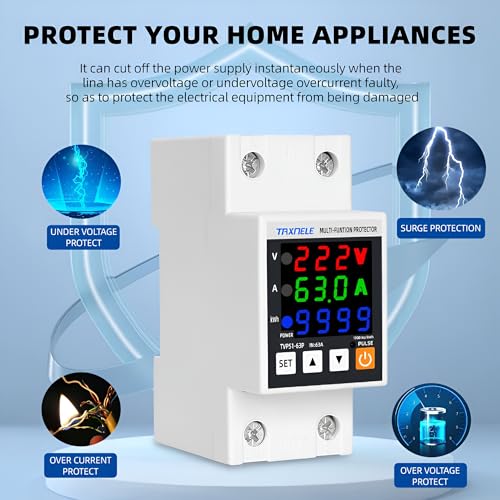

• All in 1: - No need to worry about your precious home appliances because this device that will protect them from over/under voltage and over current failures with very quick action time. AVR Current & voltage protection relay is designed to protect devices with sensitive operating voltage & current values from errors that may arise from mains voltage and Overload.

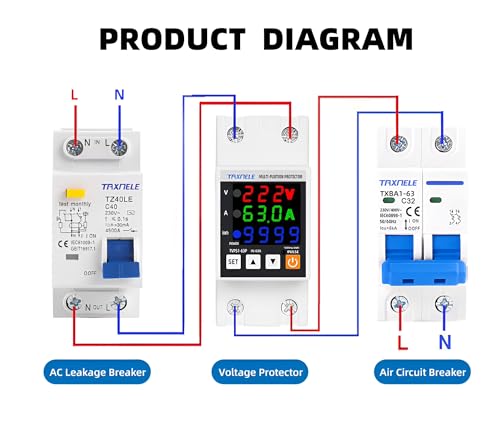

• Adjustable Nature: - As protection range differs with region and requirement, this device comes with the provision of adjusting settings of all types of values as per your requirement. Make the connections of the device according to the connection type. Otherwise, the device may be damaged. Adjust the over-current and high & low voltage and settings of the device according to the operating current and voltage values of the load you will use.
• Features: - Voltage protection (80-300V), over load protection (1~63A) and energy meter (0.1~99999999.9 kWh), Power Factor : 0.01~1.00; everything in one single device. Most prominent and best solution for home protection.
• Over-current Error state: If the current value is under the current set values (when the device is not in error), the current value rises above the current set value, the device waits for the set error waiting time, then the device de-energizes the relay, the error led turns on, the overload value displayed on the current display flashes throughout the error period.
• Voltage Error state: If the mains (input) voltage value is between the high and Low voltage set values (when the device is not in error), the mains (input) voltage value rises above the high voltage set value or under below the low voltage set value; the device waits for the set error waiting time, then the device de-energizes the relay, the error led turns on, the mains input voltage value displayed on the voltage display flashes throughout the error period.
• Auto Reconnect: - In case of voltage imbalance, the device instantly cut off the power supply. When supply is back to normal, the device automatically reconnect supply(adjustable), the error led turns off, the out led turns on. High and Low voltage error waiting 0-10sec(adjustable). Power on delay time is adjustable

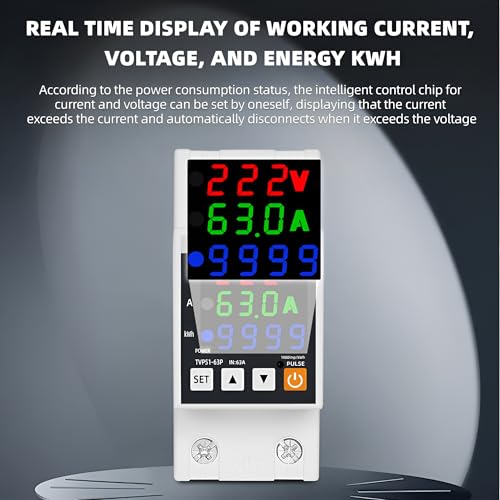

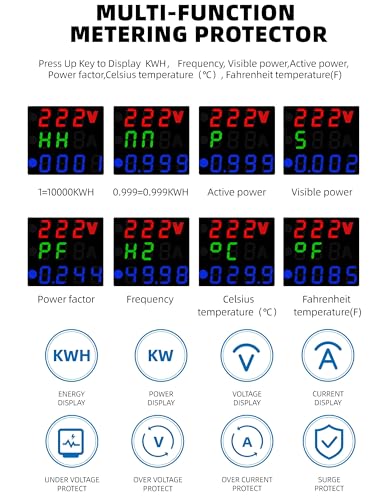

• Energy Meter: - It is not limited to protecting your home appliance, get real time information of active power (W), total energy(kWh), voltage(V), Power factor and current(A) on the LCD were readings are visible even in dark.
