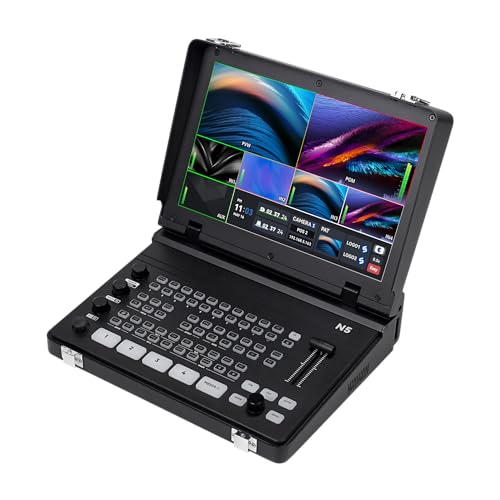

SPROLINK NeoLIVE N5 Video Streaming Switcher, 10.1 inch Flip Screen, 4K Inputs, Super Source, NDI, RTMP, PTZ Joystick, Dual HDMI+SDI Output, USB-C UVC, Internal Recording

Features

• SPROLINK All-in-One Live Streaming Video Mixer Switcher SPROLINK NeoLIVE N5 - un conmutador de video profesional para transmisin en vivo que integra codificacin de video, conmutacin multicmara, control PTZ/NDI, transmisin en vivo multicmara, monitoreo en tiempo real y grabacin USB/SD. Diseado y producido para sistemas profesionales de audio y video en transmisin en vivo / produccin en vivo / radiodifusin. Ideal para Servicios Religiosos en Vivo, Produccin en Estudio, Presentaciones Escnicas, Lanzamientos de Productos, Eventos Deportivos, Capacitacin en Lnea, Universidades, Aulas, Cumbres de Alto Nivel, Grandes Conferencias, Bodas, Podcasts, etc.
• Flexible 4K HDMI Inputs & Multi-Output Design NeoLIVE N5 supports flexible inputs - Video Input: 4HDMI inputs (2HDMI with 4K60FPS), 1USB input (PGM recording/Video Playback/File Loading/UVC Input, NDI is also supported). Video Output: 1SDI PGM output, 1HDMI PGM output, 1HDMI AUX output (All outputs can be customized as input channel/PST/PGM/Multi-view) and 1USB3.0 output (UVC live streaming). Recording Output: USB2.0/SD Card. Audio Input: 2MIC, Audio Output: 1*PHONE. (4K60FPS and 1080P60FPS Input, 1080P60FPS Output.)
• Dual-Platform Streaming & Web-Based Control - No PC Required The Video Switcher supports up to 2 Live Streaming platforms simultaneously, supporting UVC Streaming (USB3.0 Type-C) and IP Streaming which are SRT, RTMP, RTSP and NDI Streaming via Ethernet. Enjoy seamless compatibility with major social media and professional software like YouTube, Facebook, Twitch, TikTok, OBS and vMix. Meanwhile, built-in web server, the video switcher supports control via web browser on any platform, providing you with the flexibility to manage live productions. This enhances operation efficiency and convenience.
• Production-Ready Dual Recording & Instant Playback Supporting Dual Recording via SD Card/USB Disk/HDD, serving as auxiliary sources for PGM streams. With H.264 encoding, it simultaneously supports records and streams at separate bitrates (up to 1080p60fps). And the USB Recording becomes instant auxiliary sources - seamlessly integrated into live production via dedicated AUX for instant replay and live production. The recorded PGM file is production-ready, minimizing post-editing time. This ensures secure backup and storage of video content, providing peace of mind during critical productions.
• Joystick-Controlled PTZ Camera Management Easily manage and switch between 4 PTZ cameras to deliver compelling, multi-angle live streams. Once cameras are properly connected, press the magnifier/search icon to automatically detect PTZ cameras on the same LAN and add them by selecting their IP address. Customize operational parameters (pan-tilt-zoom, focus speed, exposure, WB, Gain), save/recall 10 preset positions per camera. The joystick control enables you to capture diverse angles and deliver dynamic content, ideal for professional live streaming.
• Professional Audio Mixing with AFV/MIX Modes Supports 4 HDMI inputs, 1 USB, and 2 independent 3.5mm microphone inputs, 1 headphone output. Independently adjust volume, switch, mix and delay settings for each audio channel. Support ON (MIX) mode and Audio Follow Video (AFV) mode, built-in headphone output for audio monitoring. Make your live stream audio fuller and more pleasant, ideal for studio recording and live sound reinforcement.

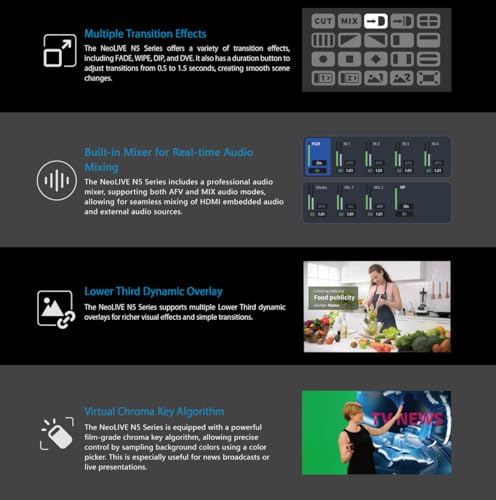

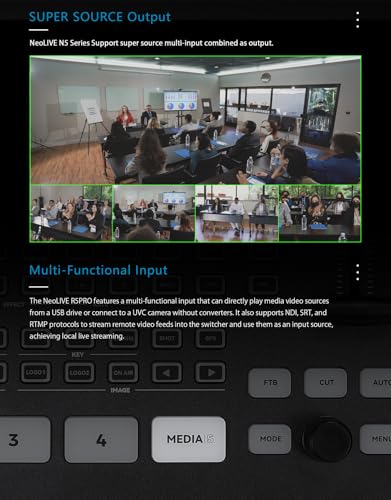

• Super Source, Chroma Key & Multiple Transition Effects Create sophisticated outputs with Super Source functionality, PiP layers and Logo overlays, allowing you to seamlessly integrate graphics and multiple live feeds for dynamic, news-style broadcasting. Rich special effects can also be selected from Chroma key (green screen), Luma key, and DSK. Multiple professional transition effects, including FADE, WIPE, DIP, DVE, and T-bar for dynamic live switching, supports adjusting duration and edge blending. The all-in-one video switcher enables professional and dynamic content creation.
