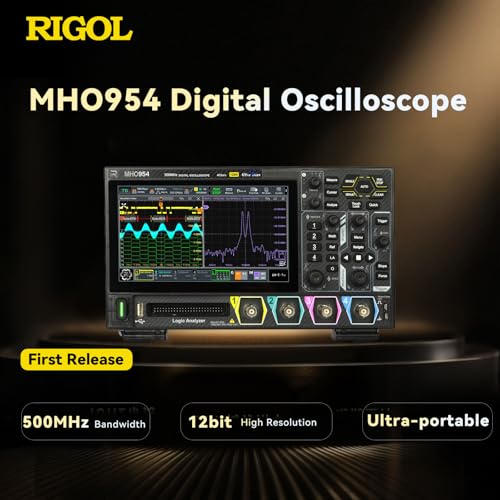

RIGOL MHO954 Digital Oscilloscope,500MHz,4GSa /s,12-bit,4+16 CH,Wi-Fi & Bluetooth,Type-C Power,Optional AFG,Ultra-Portable

Features

• Superior Performance The MHO954 digital oscilloscope features 500MHz bandwidth and a 4GSa/s sample rate to effortlessly tackle high-speed signal challenges. With 100Mpts of memory depth standard and optional upgrades up to 500Mpts, it enables long-duration capture to ensure you never miss a single detail in complex events
• All-in-One Integrated Test Station This oscilloscope integrates multiple measurement functions. It includes a 4-channel oscilloscope, a 16-channel logic analyzer (requires optional PLA2216 logic probe), a dual-channel 100MHz arbitrary waveform generator (optional), protocol decoding (optional), and a digital voltmeter function
• 12-Bit High Resolution This oscilloscope is equipped with a true 12-bit ADC, delivering 4096 vertical quantization levels16 times the resolution of traditional 8-bit oscilloscopes. This allows you to observe the most subtle signal details with exceptional clarity
• HD Touch & Remote Control The 7-inch HD (1024*600) touchscreen, powered by an Android system, provides a smooth, smartphone-like operating experience. Built-in Wi-Fi and Bluetooth enable comprehensive remote network access and control. It also supports secondary development, is compatible with SCPI commands, and is suitable for programming with LabVIEW, Visual Basic, and Visual C++
• Rich Interfaces This oscilloscope is equipped with a full suite of interfaces, including USB Host/Device, LAN, and HDMI, to meet all your connectivity needs
• Warranty & Support RIGOL oscilloscopes come with a 3-year warranty and local after-sales support. Widely used for field testing, troubleshooting, circuit debugging, embedded systems development, and lab education, it provides a high-precision, highly portable measurement solution
