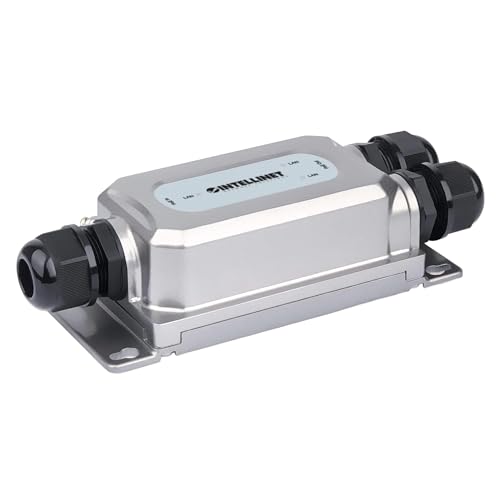

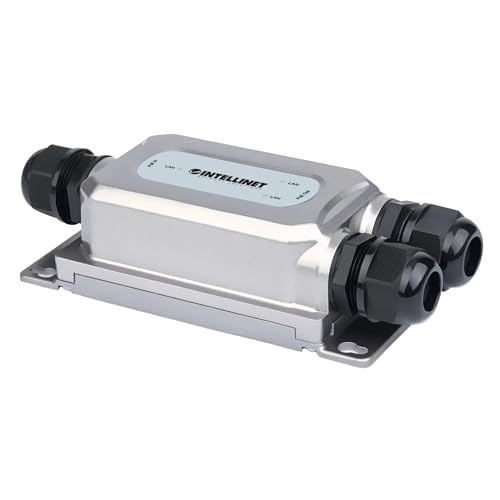

Intellinet 2-Port Outdoor Gigabit PoE++ Extender, 60W, IP67 IK10 | IEEE 802.3bt /at /af compliant unit extends Ethernet to 656 ft, supports 95 W input, 6 kV surge protection | 561648

Features

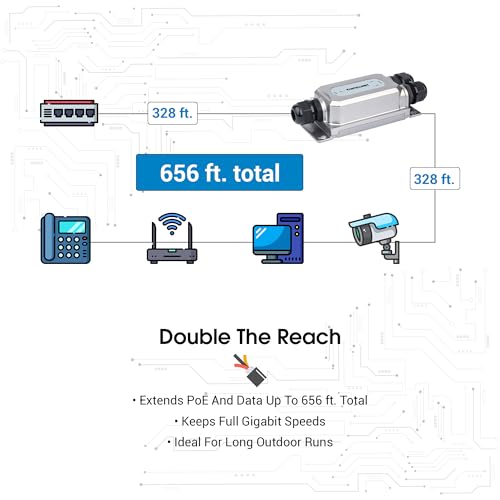

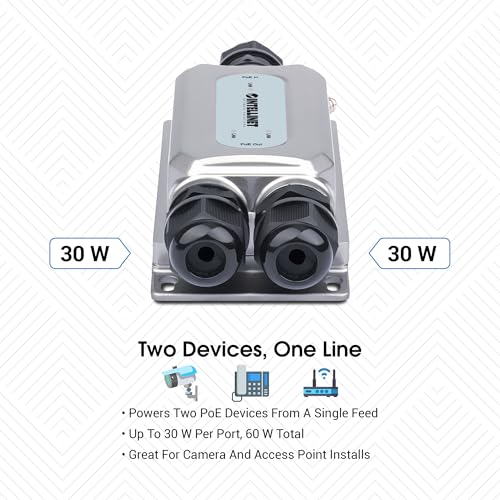

• Extends Power over Ethernet runs from 328 ft. to 656 ft., letting you place two PoE devices farther from the source while keeping Gigabit data speeds. Delivers up to 60 W total, with up to 30 W available on each of the two output ports.

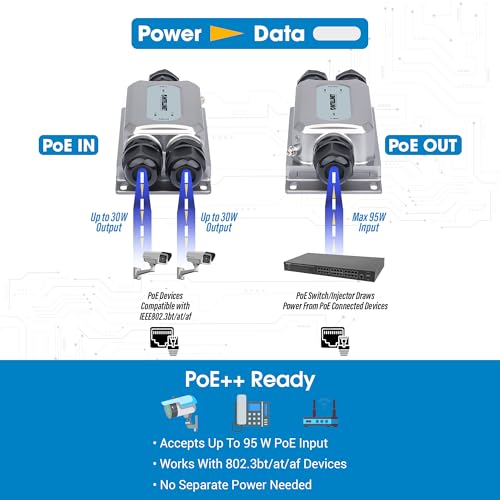

• Powered directly by the incoming PoE connection, this extender needs no separate electrical outlet or local power supply. It accepts up to 95 W input from IEEE 802.3bt, 802.3at, or 802.3af PoE injectors and switches for flexible deployment.

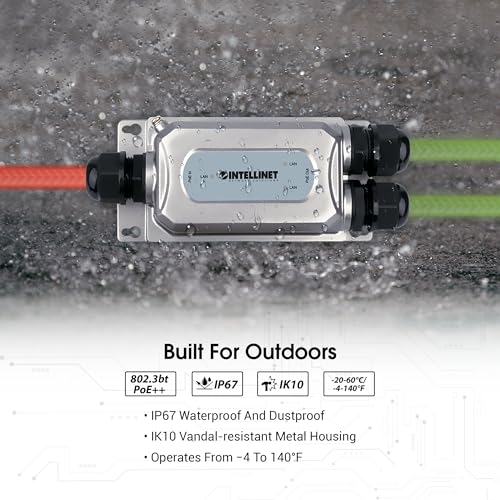

• Designed for outdoor installations, the metal housing is rated IP67 for dust and water resistance and IK10 for vandal resistance. A grounding point and up to 6 kV port surge protection help safeguard connected equipment in exposed locations.
• Functions as a PoE-powered 3-port Gigabit switch with one 10/100/1000 RJ45 input and two 10/100/1000 PoE output ports. Supports a 6 Gbps switch fabric, store-and-forward architecture, jumbo frames up to 9 kBytes, and 2048 MAC entries.
• Built for PoE cameras, wireless access points, and VoIP phones, it sends power only to IEEE 802.3at and 802.3af compliant powered devices, while non-PoE devices receive data only. This helps simplify mixed-network installations using existing cabling.
• Compact housing measures 5.9 x 2.87 x 1.73 in. and includes wall-mounting holes for fixed placement. Suitable for network cable diameters up to 5.5 mm max., it is specified for operation from -4 to 140F in 10 to 90% RH, non-condensing.
• Package includes the 2-port outdoor Gigabit PoE++ extender, earthing kit, three IP67-rated cable glands, screws, and instruction manual. Uses RJ45 connections over Cat5e cabling for 10Base-T, 100Base-TX, and 1000Base-T network links.
