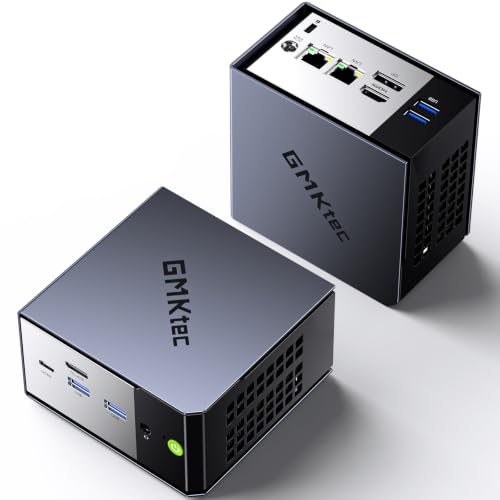

GMKtec EVO-X1 Pro Mini PC Ryzen AI 9 HX 470 Max 5.2GHz 64GB LPDDR5 1TB SSD

Features

• AI MINI PC FOR CREATION, GAMING & BUSINESS - The GMKtec EVO-X1 Pro combines the AMD Ryzen AI 9 HX 470 processor, Radeon 890M graphics, 64GB onboard LPDDR5 memory at 6400 MT/s, and a 1TB PCIe 4.0 NVMe SSD. It is designed for compatible on-device AI applications, content creation, video editing, programming, demanding office multitasking, live streaming, education, and small-business workflows. Its capable integrated graphics also supports popular esports games and many PC titles at suitable settings, delivering versatile desktop performance in a compact design.
• 12-CORE ZEN 5 PERFORMANCE + 55-TOPS NPU - Built on the TSMC 4nm process, the AMD Ryzen AI 9 HX 470 features 12 cores and 24 threads, combining 4 Zen 5 cores with 8 Zen 5c cores. It operates at a 2.0GHz base clock, with Zen 5 boost speeds up to 5.2GHz, and includes 36MB of combined L2 and L3 cache. Radeon 890M graphics provide 16 compute units running at up to 3.1GHz. The dedicated Ryzen AI NPU delivers up to 55 TOPS, while total processor AI performance reaches up to 86 TOPS.
• 64GB ONBOARD MEMORY + 1TB PCIE 4.0 SSD - This configuration includes 64GB onboard LPDDR5 memory operating at 6400 MT/s, providing substantial capacity for large creative projects, AI-assisted workflows, virtual machines, and memory-intensive multitasking. The installed 1TB M.2 2280 PCIe 4.0 NVMe SSD supports fast startup, responsive applications, and high-speed file access. Two M.2 2280 PCIe 4.0 x4 slots support compatible PCIe 3.0 or 4.0 NVMe SSDs up to 8TB per drive. The onboard memory is fixed, while storage remains expandable. Additional SSDs are sold separately.
• THREE PERFORMANCE MODES + VC DUAL-FAN COOLING - Match system behavior to different workloads with Silent 35W, Balanced 54W, and Performance operating profiles reaching up to a 65W peak. The EVO-X1 Pro combines vapor-chamber CPU cooling with a dual-fan system, surround air intake, intelligent fan control, and dedicated airflow around the memory and SSD area. This thermal design helps manage heat during gaming, rendering, compiling, AI-assisted processing, and other demanding workloads while offering flexibility between quieter everyday operation and increased performance headroom.
• TRIPLE DISPLAY + HDMI AND DP 8K SUPPORT - Connect up to three displays simultaneously through HDMI 2.1, DisplayPort 2.1, and USB4 for an expansive productivity or entertainment setup. HDMI and DisplayPort each support a single-output maximum of up to 8K at 60Hz, while USB4 supports video output up to 4K at 60Hz. The multi-display design is ideal for video editing, financial dashboards, software development, live streaming, online meetings, and research. Available resolution and refresh rate depend on the connected monitor, cable, software, and system settings.
• OCULINK + 40GBPS USB4 EXPANSION - A front OCuLink PCIe 4.0 x4 port supports compatible external-graphics and PCIe expansion docks for additional gaming, creative, and AI workload flexibility. The full-function USB4 port supports data transfers up to 40Gbps, video output up to 4K at 60Hz, and PD 3.0 power input up to 100W. Compatible docks, graphics hardware, PD chargers, and cables are sold separately; a 120W DC power adapter is included. OCuLink is not hot-pluggable, so completely power off the Mini PC before connecting or disconnecting an OCuLink device.
• DUAL 2.5GBE INTEL ETHERNET - Two Intel I226-V 2.5GbE Ethernet ports support wired link speeds up to 2.5Gbps per port when used with compatible network equipment and cabling. The dual-port configuration is suitable for high-speed NAS access, large file transfers, home labs, virtualization, dual-network environments, creative workstations, and small-business deployments. It also provides a stable wired connection for online gaming, remote collaboration, and high-resolution streaming. Actual throughput depends on the router, switch, cabling, service, and overall network conditions.
