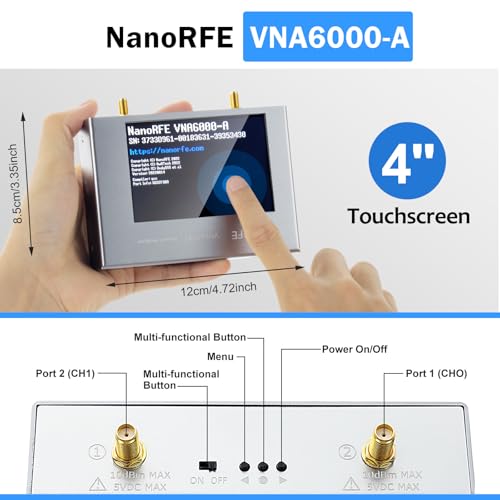

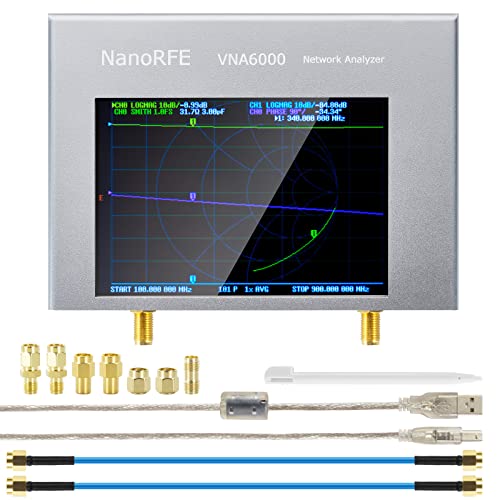

AURSINC Upgrated NanoVNA V3 NanoRFE VNA6000-A Vector Network Analyzer 50kHz-6GHz HF VHF UHF Portable Antenna Analyzer Ham Radio with 4'' Touchscreen Measuring S Parameters,SWR,Phase,Delay,Smith Chart

Features

• [Upgrade NANOVNA] ORIGINAL NanoRFE VNA6000 is a 6GHz Transmission/Reflection vector network analyzer, measuring the S11 Reflection coefficient and the S21 Transmission coefficient of a high frequency network; Not only testing standing wave impedance of the antenna, but also can debug the duplexer, the insertion loss of the filter, the isolation and testing the attenuation of the cable, shorten the coefficient, the phase, the amplification of the antenna amplifier

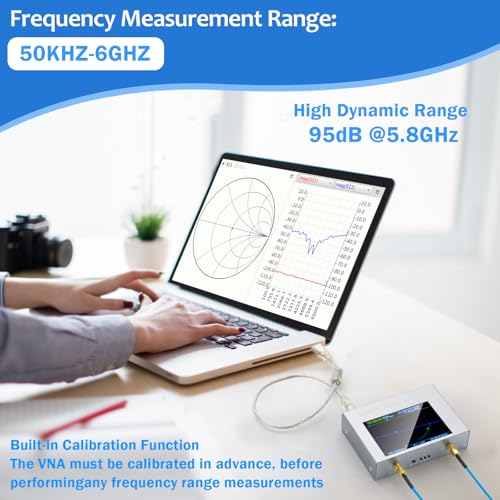

• [ULTRA-WIDE FREQUENCY RANGE] Compared to the previous NanoVNAs (10KHz-1.5/3GHz), AURSINC NanoVNA NanoRFE VNA6000 provides a 50KHz-6GHz ultra-wide frequency range with an improved precision and accuration, Moreover, the System dynamic range for this VNA is up to 95dB dynamic range

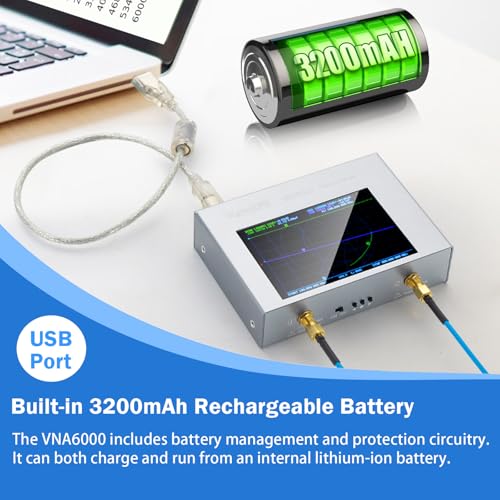

• [LARGER CAPACITY RECHARGEABLE BATTERY] The upgraded vector network analyzer is contained with a 3200mAh/3.7V lithium rechargeable battery with loger operating time and lasting battery life. Also there are battery charge LED indicators at the back of the VNA which are the battery fuel gauge, the one that is closest to the CH1 port connector is the lowest charge level indicating 25%

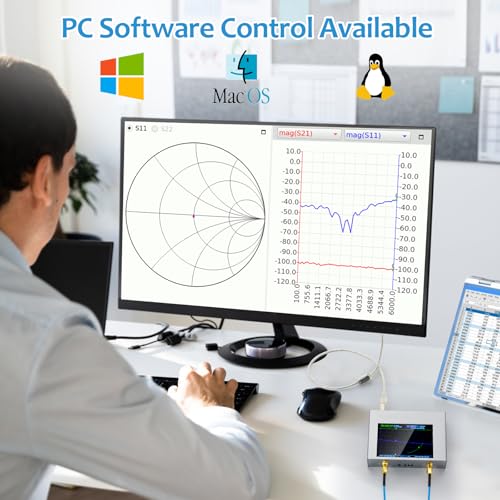

• [PC CONTROL] The antenna analyzer is equipped with S parameters export, Automatic continuous data acquisition, Custom calibration kit parameters along with support PC software control, like Windows (above 7), Linux, MacOS, the VNA can be more compatible with PC and antenna measurements, when measuring the frequency
• [Extensible Feature] The Adjustable IFBW of the VNA600 enables optimal tradeoff between measurement speed and noise and can measure narrowband devices; Flip Display, for your using convenience, you can flip the display as the following steps: Menu - Display - Flip Display
• [Warning] To prevent electrostatic damage and do NOT connect high-power signals. The NanoRFE VNA6000 features a sealed enclosure to ensure high dynamic range. If the RF switch is damaged, it cannot be repaired
