AURSINC NanoVNA SAA-2N V2.2 Vector Network Analyzer, 50KHz-3GHz 4 inch Touchscreen HF VHF UHF VNA Antenna Analyzer Ham Radio with Storage Bag, Measuring S Parameters, Duplexer, VSWR, Phase, Delay

Features

• [Compliance] The NanoVNA SAA-2N developed by Hugen, designed in collaboration with OwOComm. Under the LGPL license agreement, it is completely manufactured according to the v2_2 files issued by OwOComm at Development Department, in line with the original technical specifications (Firmware update and manual: drive.google com/drive/folders/1Lr7AOTg2pAhYBZDfaiPVZTMZkFO14PMj)
• [Upgraded NanoVNA SAA-2N V2.2 Version] Upgrade to the latest SAA-2N V2.2 vector network analyzer, featuring N-type connectors that outlast SMA ports for long-term reliability. It boasts a 4.0-inch touch screen for intuitive data viewing and testing, and is housed in a solid steel enclosuresolidly built and perfect for antenna testing with stable field performance. It comes with a carrying case that stores all accessories for easy portability
• [Measurement Frequency Range] TheSAA-2N VNA antenna analyzer covers a frequency range of 50kHz to 3GHz. System dynamic range (calibrated): 70dB (up to 1.5GHz), 60dB (up to 3GHz); S11 noise floor (calibrated): -50dB (up to 1.5GHz), -40dB (up to 3GHz); Antenna analyzer performance: 1.005 (50kHz1.5GHz), 1.02 (1.5GHz3GHz). It supports up to 201 scanning points per selected frequency range, and the plots seem smooth without a lot of noise
• [PC Connection & Bulit-in 3000mAh battery] The NanoVNA SAA-2N can be controlled by PC via VNA-QT software, supported for Linux, Windows (7+), Mac OS planned. It also support Nanovna-Saver for extracting the data for display on a computer, and for saving to Touchstore files. Built-in 3000mAh rechargeable battery for long-lasting field use (Micro USB interface)

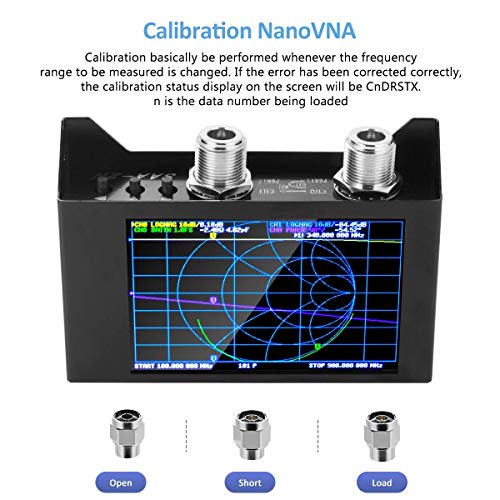

• [Calibration] The NanoVNA_V2.2 uses a similar user interface to the NanoVNA, but with a different technical architecture. The SAA-2N does not load the initial calibration data at startup, and does not automatically interpolate the calibration data after the user changes the frequency, must recalibrate or call back the calibration data after each startup and frequency change. Please read the user manual carefully before use to avoid damaging the device
• [Packing List] 1* NanoVNA SAA-2N Host (Metal Shell, 3000mAh lithium-ion Battery); 1* Micro USB Data Cable; 2* 50cm N-type Male to Male RG142-PUR RF Cable; 1* N-type Male Calibration Kit-OPEN; 1 * N-type Male Calibration Kit-SHORT; 1* N-type Male Calibration Kit-LOAD; 1* N-type Female to Female Connector; 1* EVA Storage Bag for carrying out; 1*Touching Screen Paddle and Lanyard. It's great for amateur radio use, checking out antennas, coax feed lines, and many other applications
