VANDESAI OM4 MPO-16 Fiber Patch Cable, Multimode Female Type B, 5M /16.4FT

Features

• BUILT FOR 400G/800G PARALLEL OPTICS: Designed around the 16-fiber architecture used by compatible 400G SR8 and 800G MPO-16 multimode optics. One MPO-16 connection carries multiple parallel optical lanes, making it well suited for high-bandwidth switch-to-switch, data center and network equipment links.

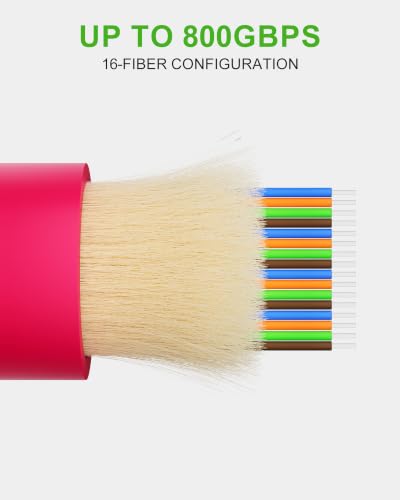

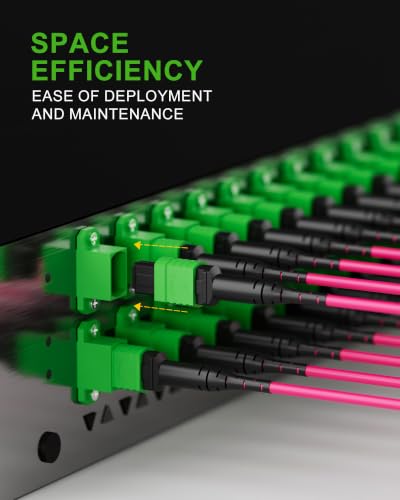

• 16 FIBERS IN ONE HIGH-DENSITY CONNECTION: MPO-16 combines 16 fibers into a single compact multi-fiber connector, reducing the number of individual fiber connections required in dense network environments. This helps simplify rack cabling, improve port density and keep high-density fiber installations cleaner and easier to manage.

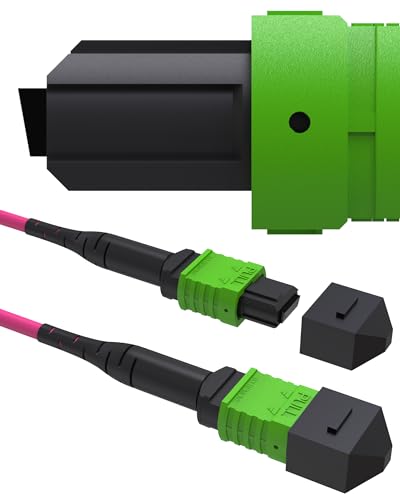

• 8 APC POLISH FOR LOWER BACK REFLECTION: MPO-16 APC connectors use an 8-degree angled polished interface to reduce back reflection at the connection point and support stable optical performance in high-speed parallel links. Female connectors feature no guide pins and are designed to mate with compatible pinned MPO-16 ports.
• OM4 MULTIMODE FOR HIGH-BANDWIDTH NETWORKS: Built with OM4 50/125 m multimode fiber for short-reach, high-speed optical transmission. With higher bandwidth capability than earlier multimode fiber grades, OM4 is well suited for modern data centers, server rooms and other bandwidth-intensive network environments.

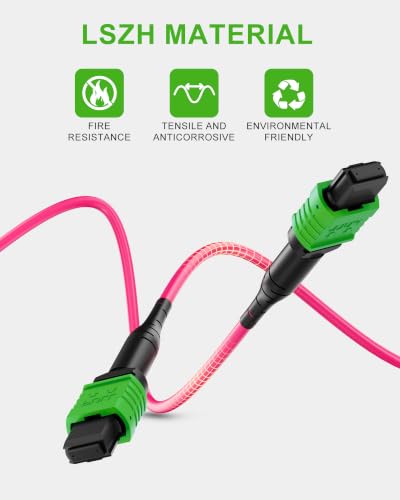

• TYPE B POLARITY WITH LSZH CONSTRUCTION: Type B polarity reverses fiber positions from end to end for compatible parallel-optics connections. The LSZH jacket provides low-smoke, zero-halogen construction for indoor network installations. MPO-16 uses a different key design from standard MPO-12, so confirm connector type, polish and polarity before ordering.
