USB Logic Analyzer Device kit USB Cable 24MHz 8CH 24MHz 8 Channel UART IIC SPI Debug with 6 Colors Test Hook Clip Set Mini to USB Cable Dupont Cable for Arduino FPGA M100 SCM

Features

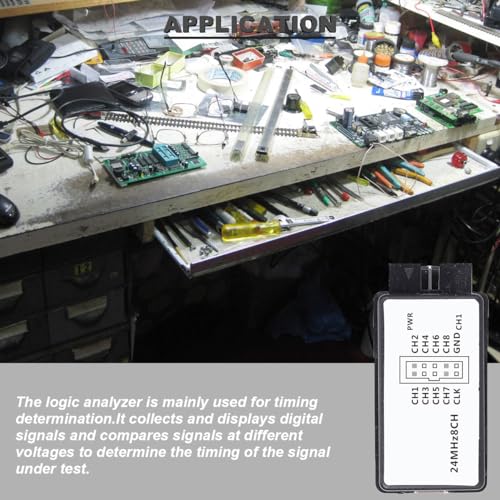

• WHAT IT DOES: The logic analyzer is mainly used for timing determination.It collects and displays digital signals and compares signals at different voltages to determine the timing of the signal under test.Using a logic analyzer, you can easily set signal trigger conditions, capture signal interference glitches, and complete communication protocol analysis.

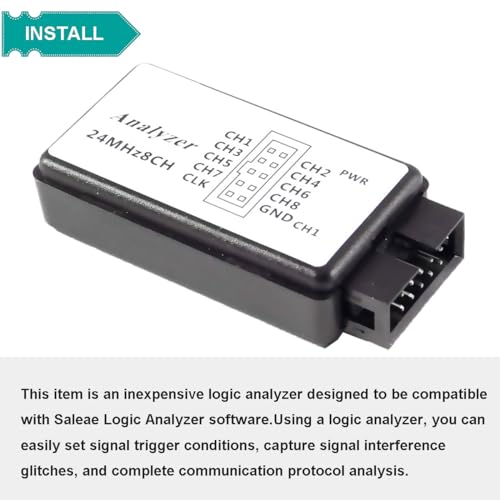

• FEATURES: This item is an inexpensive logic analyzer designed to be compatible with Saleae Logic Analyzer software.

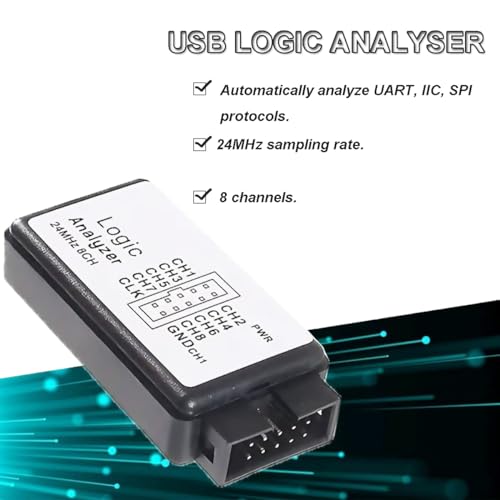

• AUTOMATIC ANALYSIS: UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort.24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.

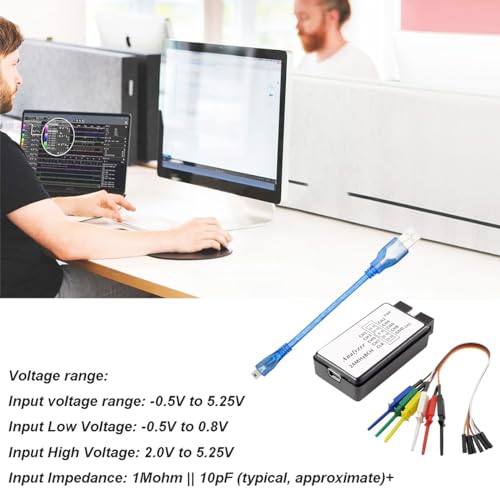

• CHANNEL VALUE: A total of 8 digital channels, the voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.
• SAMPLING RATE: 24 MHz , can be 24MHz.16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
• APPLICABLE TO VARIOUS OCCASIONS: The logic sampling rate of each of the 8 channels is 24M/s, generally about 10M, which is sufficient for various occasions.

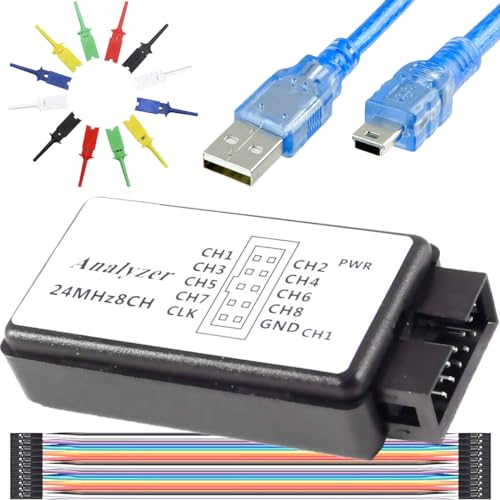

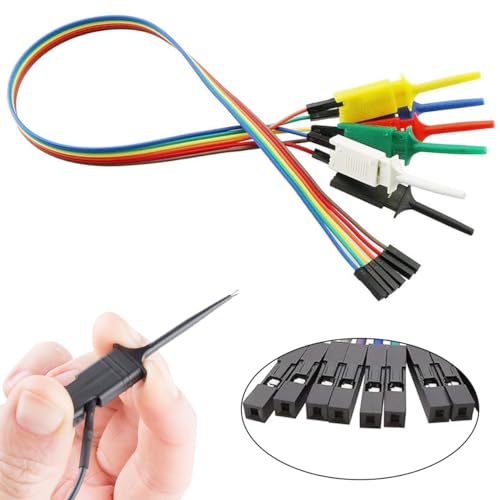

• PRODUCTS INCLUDE: 1 x Logic Analyser;1 x Mini to USB cable;22 x Female to female cable;12 x Test Hook Clip.
