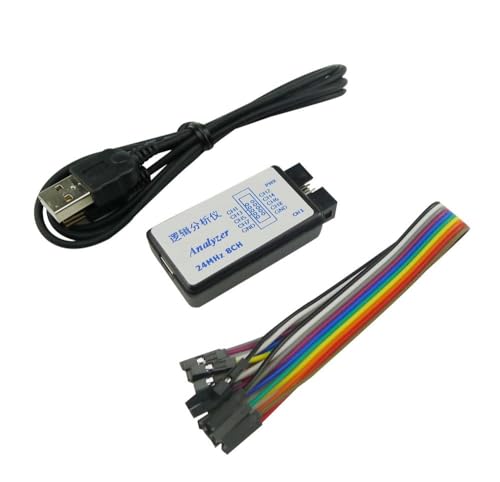

USB Logic Analyzer 24MHz 8CH 8 Channel UART IIC SPI Debug Device + 12PCS 6 Colourful Test Hook Clip Set + USB Cable + Debugging Tool Sets

Features

• Input voltage range: 0~5V;Digital channels: 8; Input low level: < 0.8V; Input high level: > 1.4V; Error/Accuracy: Pulse width measurement: 42ns (at 24MHz).
• Logic sampling can go up to 24M/s per channel, in fact 10M/S is plenty, Maximum sampling rate: 24Msps.
• 8 channels: You can collect signals while analyzing data. It can monitor 8 different digital signals. Sample and analyze like I2C, UART.The sampling rate can be set as follows. 24KHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
• Supports UART IIC SPI debugging, WIN7 (32 & 64), 2K, XP, LINUX.
• This Set of kits contains 12pcs SMD IC 6 Colors Test Hook Clips matching for using this 24MHz 8CH logic analyzer, with USB cable and Female cable.When you do MCU related products, especially for UART, SPI, IIC and other communication debugging, this sets will be helpful.
