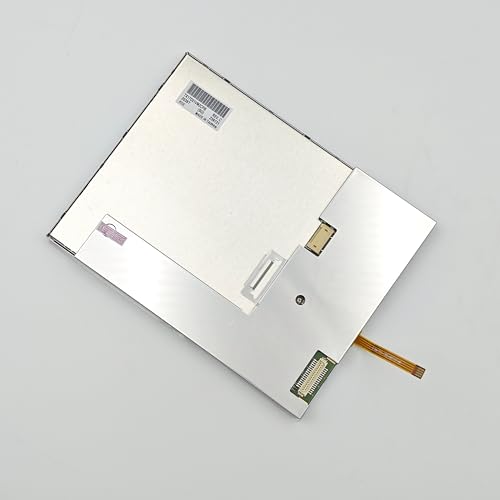

TX17D01VM2CPB 6.5 Inch LCD Display Screen 640x480 VGA High Brightness 800 cd /m with Resistive Touch Panel 4-Wire LED Backlight for Industrial Equipment

Features

• HIGH BRIGHTNESS 6.5" TFT-LCD DISPLAY 640(RGB)x480 VGA resolution with 4:3 aspect ratio and RGB vertical stripe pixel layout. Active area 132.48x99.36mm, outline 153x118x10.7mm. Ideal for industrial machines, medical devices, outdoor equipment, and legacy system upgrades.
• EXCEPTIONAL OPTICAL PERFORMANCE 800 cd/m typical brightness (highly readable in bright environments), 600:1 typical contrast ratio, supports 262K colors. TN normally white transmissive mode with 6 o'clock best view direction.
• WIDE VIEWING ANGLE & FAST RESPONSE 80/80/60/80 viewing angles (L/R/U/D) at CR10. Response time 30ms (Typ.) (Tr+Td). Provides clear and stable images for most industrial applications.
• BUILT-IN 4-WIRE RESISTIVE TOUCH SCREEN Comes with factory-integrated resistive touch panel (F/G). Ready for touch input integration. No need to purchase separate touch overlay.

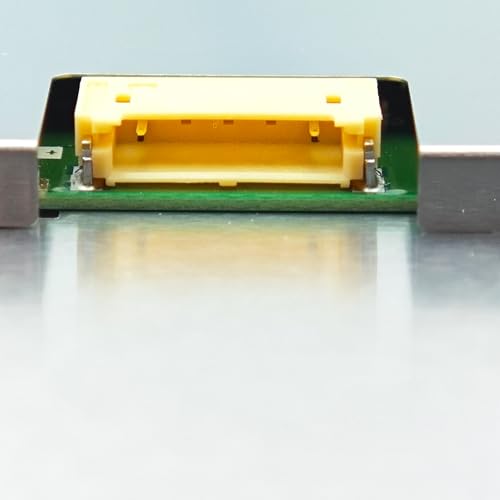

• LONG-LIFE LED BACKLIGHT WITH DRIVER 3S4P WLED backlight rated at 70,000 hours typical life. Built-in LED driver included (no external driver needed). Low power consumption 4.44W typical. CMOS (1 channel, 6-bit) signal input via 31-pin connector. Operating voltage 3.3V typical. Wide temperature range: -20C to +70C operating, -30C to +80C storage. Vibration resistant up to 2.0G (19.6 m/s).
