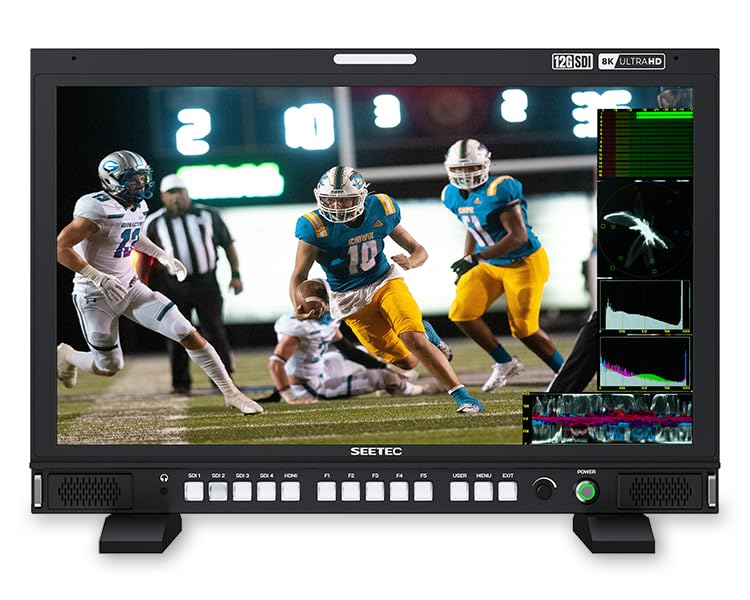

SEETEC S24 23.8inch 4K /8K Broadcast Monitor High Brightness 1000nit 4x12G-SDI HDMI UltraHD 3840x2160 3D LUT Single, PBP, Full-Waves, PIP, Quad and 8K Modes

Features

• S24 monitor equipped with 23.8-inch ultra HD large screen, supports 3840x2160 4K resolution, with a pixel density that is four times that of Full HD, resulting in a more detailed picture quality. Providing a DCI-P3 98.7% color gamut, more realistically restore the colors of image, comparable to cinema level picture quality,and with 178(H/V) wide viewing angle, almost no color difference at any angle.
• High brightness 1000nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need. Features different calibrated color spaces BT709, DCI-P3, BT2020 for selected. Meet the different color needs of the photographer. EL Zone is designed for camera operators, who can see the true and precise scene-referred dynamic range, colorized in stops, directly from the camera.It's ideal for assessing exposure in both HDR and SDR production.
• S24 supports 12G-SDI signal link 4K signal, 3G-SDI quad-link 4K signal and quad-link 12G-SDI 8K signal (combine four 4K 60Hz video signals into one 8K 60Hz video signal). Just a single device can meet the whole workflow requirements from broadcast studio live streaming to multi-view monitoring, reducing the system construction complexity and cable costs.
• Multiple display modes, the screen can be set single, PBP, full-waves, PIP, quad and 8K modes.You can select and change any input signals among 12G-SDl, HDMI2.0 and 12G-SFP, you can also set the image zoom,freeze, mirror, LUT selection,etc.(except 8K mode). Meet different monitoring needs. S24 can be widely widely used in the pre-shooting and post color grading work of broadcast, film and television, and high-end advertising production.
• S24 quipped with 12G-SDl, 12G SFP and HDMI 2.0 interfaces, it can support up to 4096x2160P(60/50/30/29.97/25/24/23.98Hzand 3840x2160P60/59.94/50/30/29.97/25/24/23.98Hz) signal. In addition, S24 also provides LAN, RS485, GPI control interfaces to meet different needs. 12G SFP interface, which allows to transmit 12-SDl signal via SFP optical fiber module, is suitable for most broadcast field. (Fiber module is optional)
• You can use the accompanied power cord to connect AC power input or use DC 12V/7.5A power adapter to connect XLR power input to get continuous power, you can also install V-mount battery on the V-mount battery plate for mobile application. (XLR power Adapter and battery are not include)
