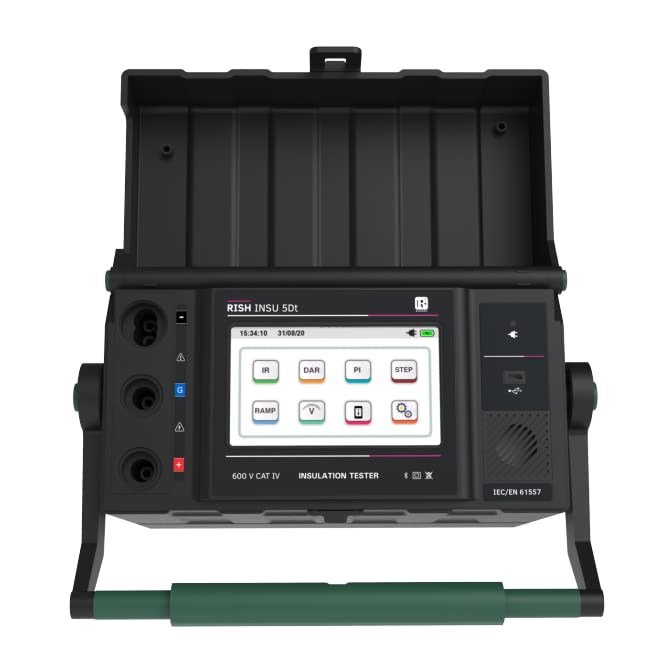

RISH INSU 5DT 5KV Bench Top Digital Insulation Tester, with TFT Touch Screen, with PI, DAR, Step voltage & Ramp Test

Features

• Selectable short circuit current 1.2mA and 3mA Test voltage can be set in any desirable value from 100V ~ 5000V, selectable Test Voltage in steps 25V from 100V to 5000V. User selectable digital filters
• Noise Rejection 3 mA: High Noise immunity allows accurate measurement under HT lines Operates on Battery and Mains as well
• Bluetooth connectivity for data logging. Communication Interface: Bluetooth 2.0 & 4.0 Class II and electrically isolated USB 2.0 communication. Touch screen TFT colour display Audio Read-out. Capacitance Measurement: Capacitance can be measured from 1nF to 50uF High Insulation resistance measurement: Insulation resistance measurement from 50 K to10T for 5kV test voltage
• PI, DAR, DD, Step voltage & Ramp Test. FREE SOFTWARE, available at the Rishabh website. Polarization Index (PI) testing is an extension of the insulation resistance test and is designed to check specific issues in a motor such as moisture and insulation deterioration Dielectric Absorption Ratio DAR measurement is a diagnostic test similar to the (PI), but DAR takes the ratio of the Insulation Resistance usually measured at 30 sec and 1 min (other time settings are possible)
• Dielectric Discharge (DD) Test is a diagnostic insulation test that allows aging and deterioration of insulation to be assessed Measurement of DC and AC voltages from 20V ~ 600V Three programmable timers Insulation leakage current measurement
