Ratio 101 Planetary Gearbox for Nema 34
18th Jul 2026, 05:45 PM

Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe

Price may vary by location, shipping cost, and availability.
Lowest ever
10% Off
$99.89
$110.99

Buy @ amazon.com
Highest: $99.89
Average: $99.89
Lowest: $99.89

Price History Graph

Offer Price Prices
Lowest: -
Average: -
Highest: -

Price History Information

You can check the price history of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe here. This product's current Price in USA is $99.89. The average and highest prices are $99.89 and $99.89 respectively.

Lowest Ever Price $99.89
4th Jul 2026
Average Price $99.89
Based on 17 days price tracking
Highest Price $99.89
4th Jul 2026

Current Price in USA

Price $99.89
MRP $110.99
Savings $11.10
Discount 10.00%

Product Information

Details

Product Name Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
Store Product Code B0FHHTGSJC
Store Name amazon.com
Brand YEJMKJ
Category 3D Printer Accessories
Product Manufacturer YEJMKJ

Features

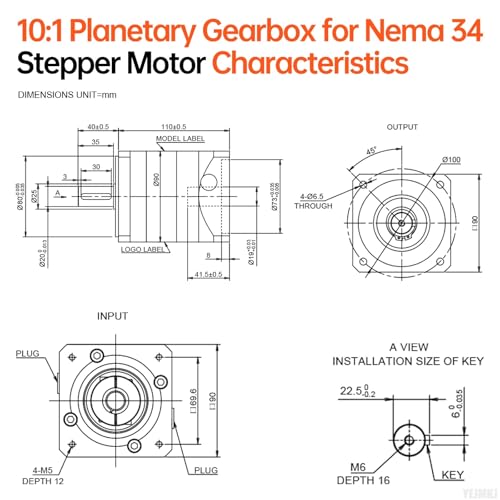

  • Specifications: Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 19mm-41.5mm/73mm-8mm/F69.6mm-M6 (Compatible with shaft length s ranging from 24 to 41 mm), Body length 90-110mm (3.55-4.34in), Input shaft diameter 19 mm, Input shaft length 41.5mm, Output shaft diameter 20 mm, Output shaft length 40 mm, Installation hole distance 69.6mm, Weight 235g.

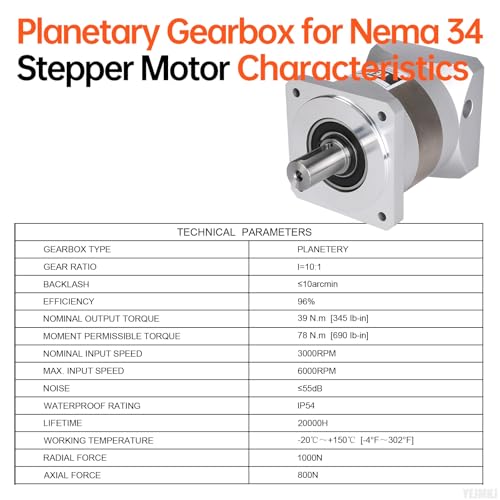

  • Parameters: Nema 34 planetary gearbox, Backlash 10 arcmin, Efficiency 96%, Nominal output torque 39Nm (5522.86ozin), Moment permissible torque 78Nm (11045.73ozin), Nominal input speed 3000RPM, Max. input speed 6000RPM, Radial force 1000N, Axial force 800N.
  • Reliability Parameters: Engineered for precision and endurance, this Nema 34 planetary reducer meets the following critical specifications: Noise 55dB, Waterproof rating IP54, Lifetime 20000H, Working temperature -20 +150 [-4F302F].
  • Reliability Parameters: Engineered for precision and endurance, this Nema 34 planetary reducer meets the following critical specifications: Noise 55dB, Waterproof rating IP54, Lifetime 20000H, Working temperature -20 +150 [-4F303F].
  • Application: From automated systems to precision tools, this planetary gearbox excels where low speed and high torque are key. Its efficient design ensures reliable, controlled movement in every application.

Images

×
Image of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
Image of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
Image of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
Image of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
Image of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
Image of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
Image of Ratio 10:1 Planetary Gearbox for Nema 34 Stepper Motor 90-110mm | Planetary Reducer for 86 step motor Backlash 10 arcmin Input Shaft 41.5mm φ19mm 4 Screw 2 Plug 1 Key CNC 3D Printer Lathe
