Oscilloscope,SKYCENX SK202D Handheld Oscilloscope Multimeter,80MHz Bandwidth,200MS /s Sampling Rate,6000 Counts,Voltage,Current,Capacitor,Resistor,Diode Test

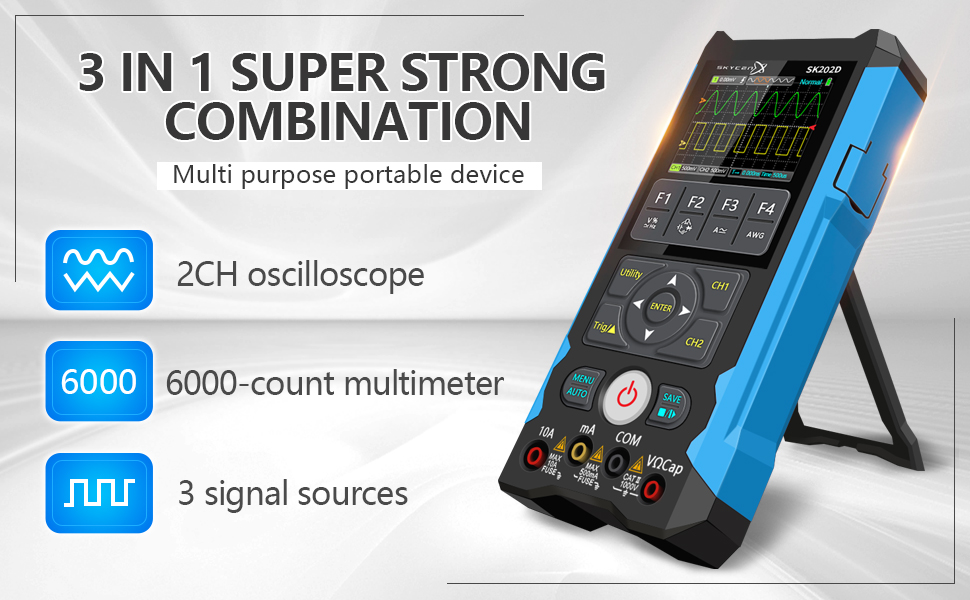

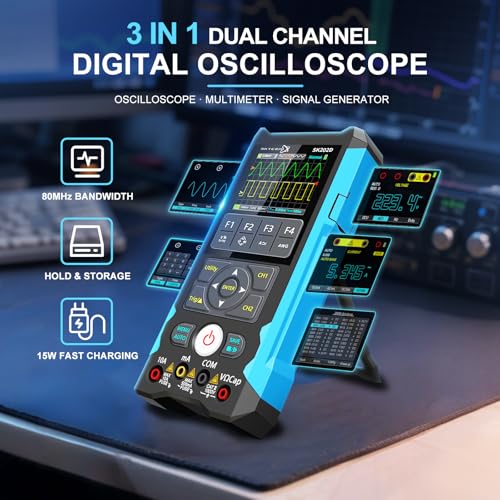

Features

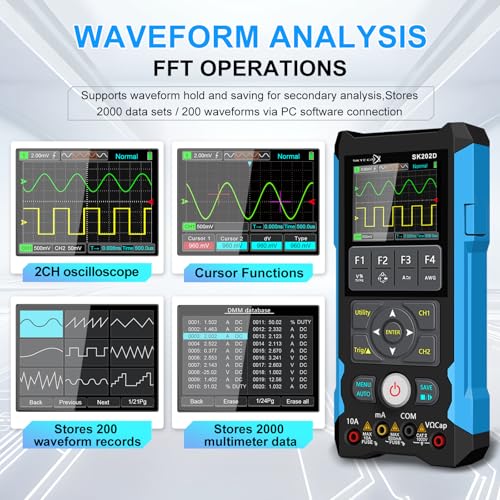

• 2 Channel Oscilloscope The oscilloscope features 80 MHz bandwidth, 200 MSa/s sampling rate, and an automatic measurement function. Its vertical sensitivity range is 10mV/div to 10V/div (via Input BNC). It supports measurement data waveform hold, capable of storing 2000 sets of data and 200 waveforms. Additional features include FFT mathematical operations, cursor measurement, persistence mode, and YZ mod
• 6000 Counts MultimeterAC Voltage: 0-750 V, DC Voltage: 0-1000 V, DC/AC Current: 0-10 A, Resistance: 0-60 M, Capacitance: 0-99.99 mF, support continuity Measurement and On-Off Test
• Signal GeneratorThe signal generator supports three modes for precise waveform capture: Auto/Normal/Single. Additionally, the waveform output frequency can go up to 5 MHz (The sine wave range is 1 Hz to 5 MHz, the square wave range is 10 Hz to 1 MHz, and the triangle wave range is 10 Hz to 1 MHz) with a 1 Hz step, and supports 3 different waveforms.
• Supports Type-C Connection and Data hold and storage functionsThe SK202D Oscilloscope Multimeter support Type-C connection to smart devices such as computers or tablets,Additionally,it features a data and waveform hold function during measurements, allowing it to store 2,000 sets of data and 200 wavaforms.

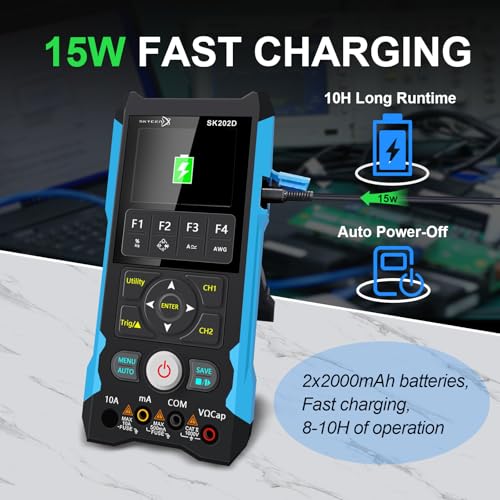

• Supports fast charging for extended usage timeThe SK202D oscilloscope multimeter supports 15W fast charging, providing approximately 10 hours of usage time to meet your long measurement needs. Additionally, it has a built-in auto power-off function to save battery.
• Outstanding DesignThe SK202D uses an FPGA+MCU+ADC hardware architecture and a 320240 resolution TFT color screen instead of an LCD. Data and waveforms remain clearly visible in bright environments or at different angles, making it suitable for various everyday measurement needs.
