Oscilloscope with 2 Channels 120Mhz Bandwidth, Digital Oscilloscope Signal Generator 500MSa /s Sampling Rate, Handheld Oscilloscope Kit 2.8 inch LCD Backlight Display&Waveform Storage&FFT Spectrum

Features

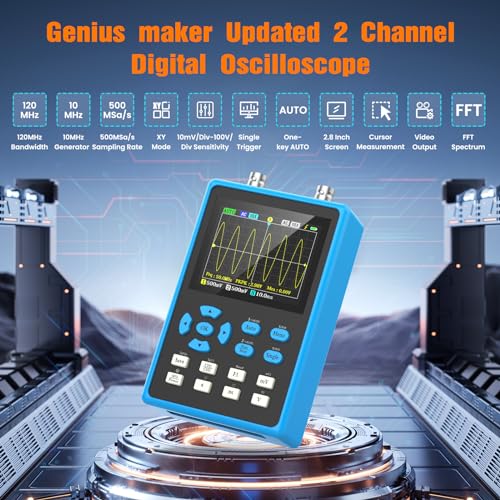

• Upgraded Professional Designed: 2 channels oscilloscope, 120MHz bandwidth, real-time sampling rate of 500MSa/s, 10mV/Div-100V/Div high Sensitivity. It adopts ARM+FPGA+ADC chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions
• Function Signal Generator: The bottom of the digital oscilloscope can output a variety of waveform of 2.5V amplitude such as sine waves, square waves, triangle waves, half waves, among which the frequency adjustment ranges of sine waves is 0~ 10MHz, the frequency ranges of other waveform is 0~2MHz, and the accuracy is up to 0.1Hz

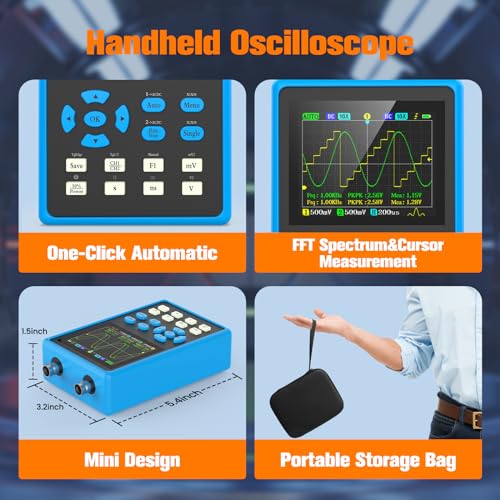

• Easily Measuring: Auto/Normal/Single 3 Trigger modes, two trigger types (rise/fall) and two trigger levels (manual/auto), the professional portable oscilloscope kit is easy to capture instantaneous waveform. Support waveform parameter setting, such as time base, amplitude, trigger slope, etc. Support waveform one-key AUTO to automatically adapt to the screen, no need to adjust parameters, convenient and accurate measurement
• FFT Spectrum Cursor Measurement: FFT viewing function can analyze the spectral characteristics of the signal. Cursor measurement function, convenient manual measurement period, frequency and voltage, support for horizontal and vertical cursor measurement functions, useful for measuring pulsed signals, spikes or other non-periodic signals. The oscilloscope has 14 measurement options: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base

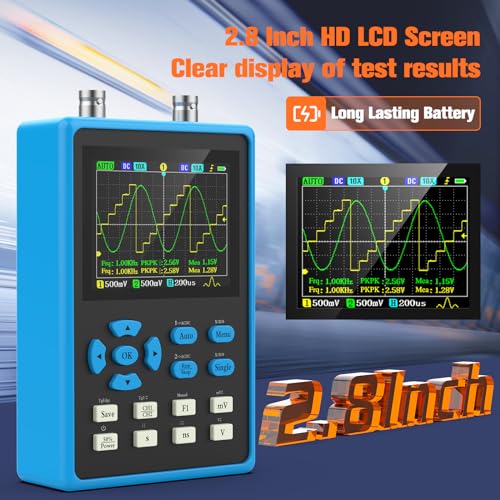

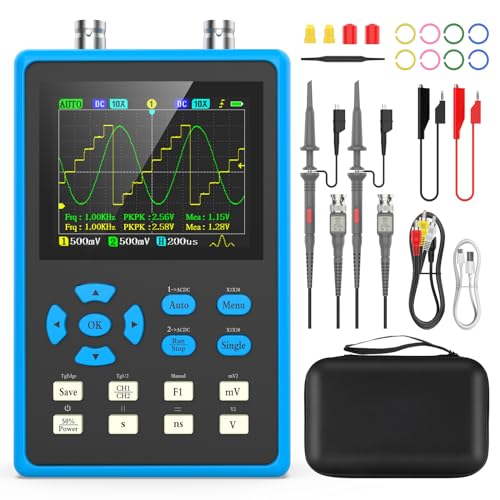

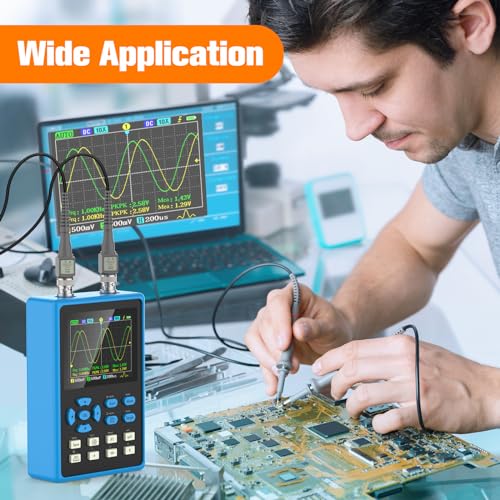

• Wide Applications: The handheld oscilloscope display is equipped with a 2.8-inch HD LCD screen that clearly displays test results. It can be used for sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on. Packing list: 1*Oscilloscope, 1*Gen cable, 1*USB Cable, 2*Probe, 1*Storage bag, 1*Manual
