OldArc BK5 Electric Door Lock kit | Pin + RFID Card Door Lock System for Office | Electric Bolt Lock + Exit Switch + Electronic Door Lock for Office RFID Card Door Access Control System

Features

• Access Control Kit for Door: OA-K5-SB OldArc Access Control System includes KM-35 Door keypad with Surface Drop Bolt Lock + 5 RFID cards + 12V 5amp Power Adapter + Door Exit Switch. Suitable for office wooden & aluminum doors Biometric Unlock by PIN + RFID card & Exit Switch.

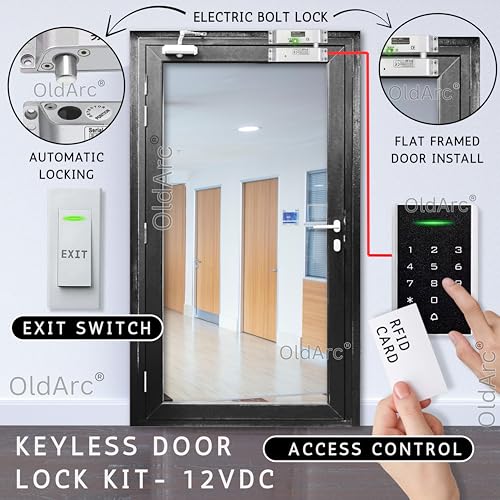

• Keyless Door Entry Kit - Complete kit is included with Power Supply except wiring ( no extra wire). Easy installation with label Wire guide. Unlock Office Doors with PIN, RFID Card (Outside), or Exit Button ( inside) . Electric Bolt Lock Kit Perfect for wooden & aluminum door entrances.

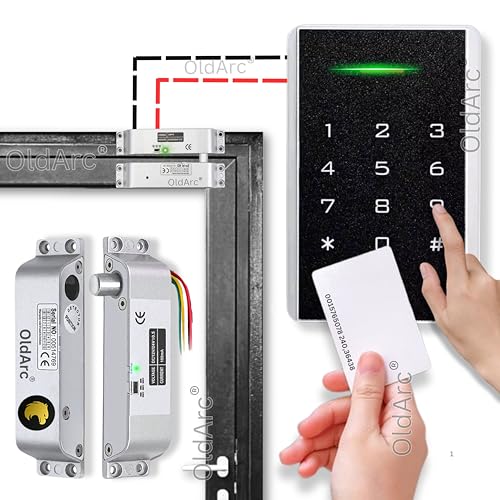

• Quick Access Control Connection: Refer to the 5th image guidance, Connect 12V DC 5A adapter to KM-35 keypad (12V & GND) 4 Wire surface bolt lock to connect (NO & GND) of KM-35 keypad 3 Wire exit switch to connect (COM to GND, NO to Exit input) Power on program access PIN & RFID cards.

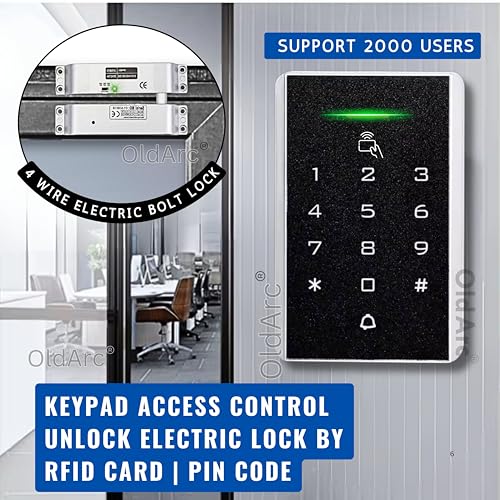

• KM-35 Door Access keypad: Standalone Door Access Control Biometric Keypad Reader 12VDC supports PIN & 125KHz RFID Card access, supports 2000 users, Weather-resistant ABS body with Backlit Pin Numbers keypad for night access, built-in buzzer & LED indicators.
• Electric Bolt Door Lock: High quality OldArc 4 Wire Flat Surface Drop Bolt Lock With steel lock bolt, 1,000,000 popup test, Auto-lock with magnetic sensor alignment, Adjustable time delay (0/3/6s), anti-damage design, Compatible with door closers, stays cool during continuous use.

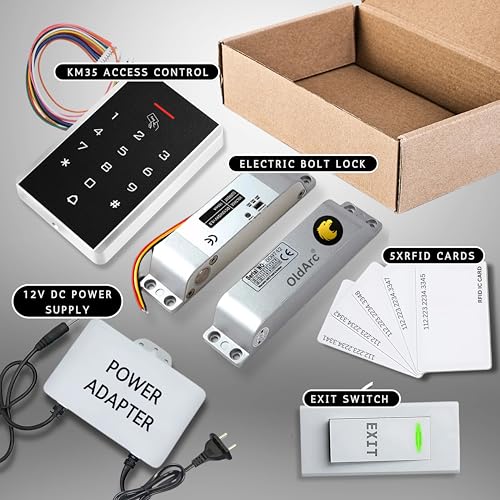

• Package Includes: 1 x OldArc Electric Bolt Lock 1 x Strike Plate | 1 x KM-35 Door Access Control Keypad | 1 x Door Exit Switch | 5 x Thin RFID Cards | 1 x 12V DC 5amp Adopter.
• Size & Specifications Electric Surface Bolt Lock: 150MM Length x 34MM Weight x 28MM Height KM-35 Keypad Reader: 112MM Length x 74MM Weight x 18MM Height Exit Switch: 86MM Length x 86MM Weight x 25MM Height
• Easy Mount Electric Bolt Lock: consists of two parts being the electric lock that operates the bolt lock mechanism and the Sensor Plate where the bolt lock slides into when aligned. The electric lock is typically installed on the door frame and the pin casing is installed on the door
