Linovision Industrial Gigabit 90W POE++ Splitter with IEEE802.3bt PoE and DC 5 /9 /12 /24V Output, Din Rail Mounting, Power Supply for PTZ Cameras, Access Control Systems

Features

• BT90W PoE SPLITTER - Split 90W IEEE802.3bt PoE to IEEE802.3bt POE and DC power outputs, max 72W in total.
• IEEE802.3BT PoE OUTPUT - 1 x Gigabit IEEE802.3bt PoE outout. Active PoE follows PD Detection -> Classisication Type -> Power On procedures to prevent stanard PD device from damaging. So Non-POE devices are also supported.
• 5V/9V/12V/24V DC OUTPUT - 1 x DC 5V/14A or 9V/7.8A or 12V/5.9A or 24V/3A switchable output(terminal blocks).

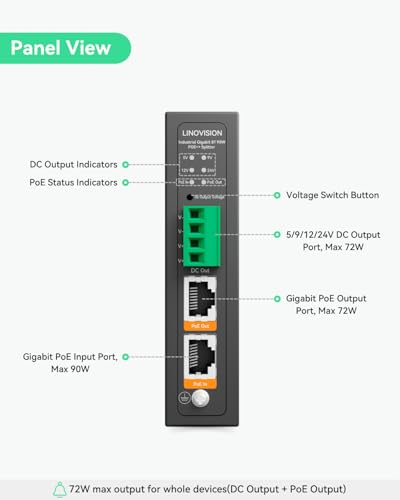

• INTELLIGENT LED INDICATOR - Shows 5V/9V/12V/24V DC output. Help to efficiently control how much power is output.
• RUGGED DESIGN - For harsh environment with wide temperature range between -40 ~ 167 (-40 ~ 75 ). Short-circuit protection. Thermal cut. Din rail mount.

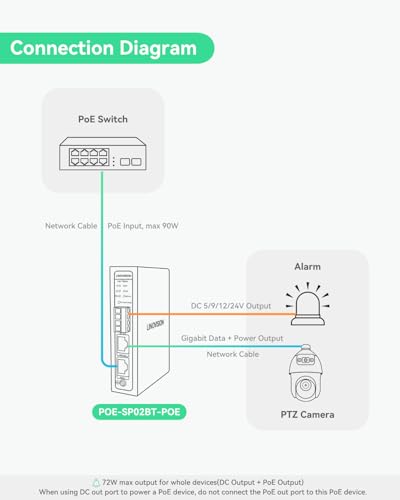

• APPLICATIONS - Provide a sharded 72W power to PoE devices or Non-PoE devices simultaneously, like the outdoor PTZ camera with extra wiper or IR, IP cameras, video server, AP, LED lighting, VoIP phone, etc.
• NOTED - POE-SP02BT-POE needs to work with standard IEEE802.3bt/at standard PoE switches, like POE-SW508G(ASIN: B09XDY8R9G) or POE-IN9001(ASIN: B0CYLHFZHT). Please do not connect it with non-standard BT POE Switches or Injectors, including POE-IN90W (Passive PoE version).
