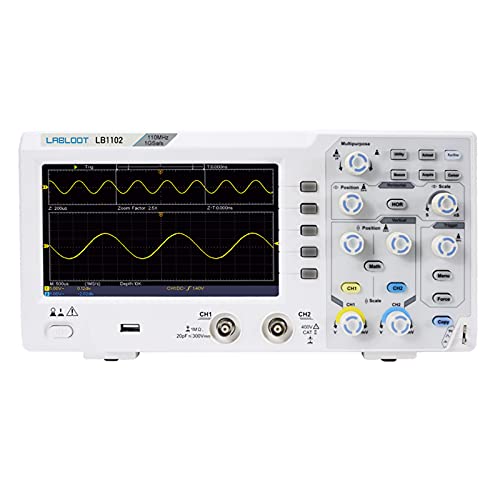

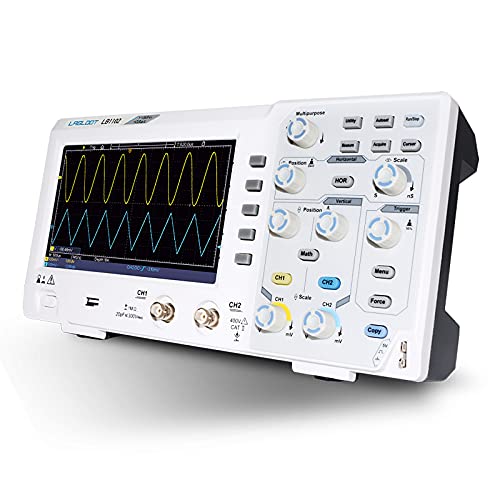

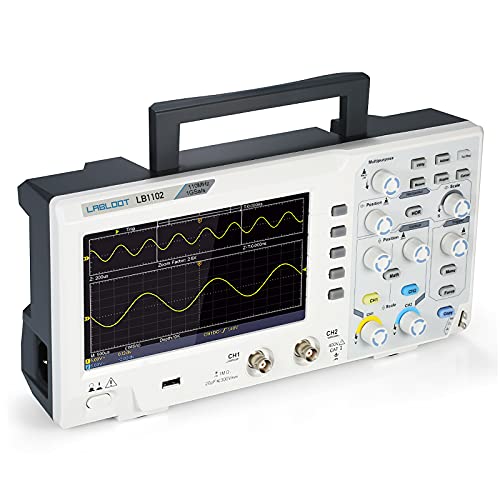

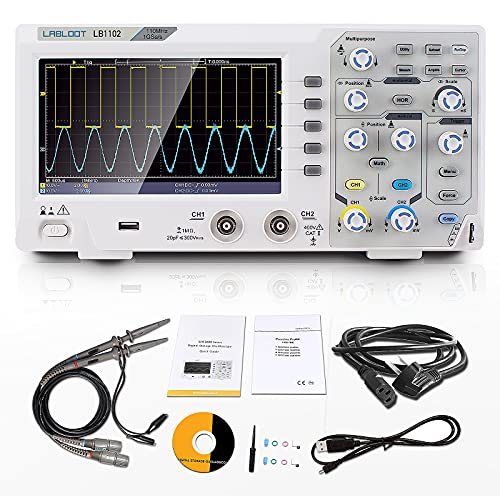

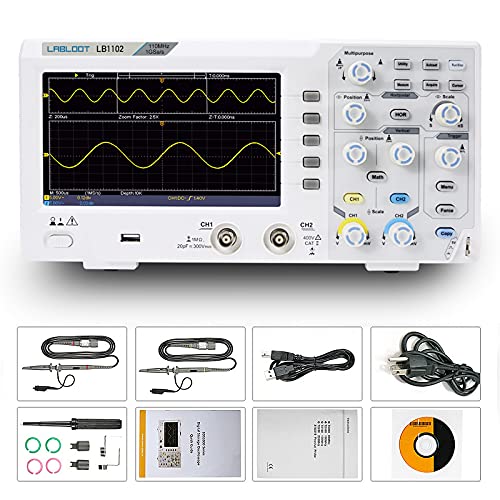

LB1102 110MHZ Bandwidth Oscilloscope 2-Channel 1GS /s Digital Storage Oscilloscope 7 inch LCD Display

Features

• Professional Storage Oscilloscope- Labloot LB1102 2 channel oscilloscope is a super-economical digital storage oscilloscope. The bandwidth is 110MHz. The highest real-time sampling rate is up to 1GS / s. 8-bit high resolution ADC fully recovers waveform details. Low background noise, vertical sensitivity of 2mV/div - 10V/div. It can also be used as oscilloscope, frequency meter and FFT spectrum analysis.
• 7" LCD Screen & Simple Operation- This oscilloscope with 7-inch large LCD screen, 8*12 grid color display, 800 x 480 pixels, clear and realistic waveform display, ultra-thin body and handle design, lightweight and portable, pop-up menu, user-friendly operation interface, all knobs Clear and easy-to-understand partitions and interfaces, cooling holes on the back to ensure fast cooling during prolonged use.
• Widely Application Oscilloscope- This oscilloscope can support multiple SCPI remote commands and LabVIEW. U disk storage and firmware upgrade are supported. USB interface and power cord socket, complete hardware configuration. Supports optional RS232 port, HDMI port, WIFI communication, SD card storage, USB port for LAN, USB, etc. Applied to electronic circuit debugging, circuit testing, design and manufacturing, education and training, vehicle maintenance and testing.
• Multiple Automatic Measurements&Triggers-Labloot LB1102 Digital storage oscilloscopes have multiple trigger functions and more than 20 kinds of automatic measurement functions:Vpp, Vavg, RMS, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Width, Overshoot, Pre-shoot,Rise time, Fall time, +Width, -Width, +Duty, -Duty, Delay A--B , Delay A--B, area,cycle area, trigger types include edge, video; trigger mode is divided into automatic, normal, single.

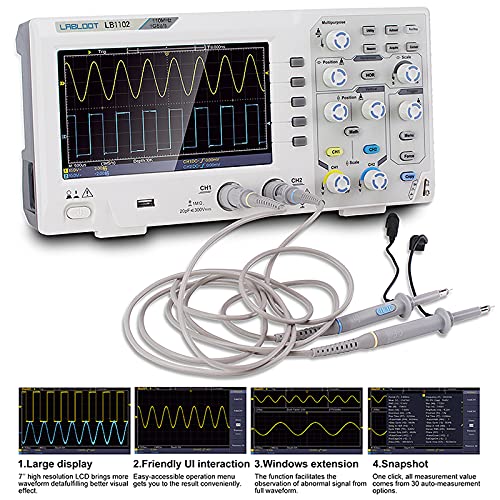

• UI interaction&Windows extension Friendly UI interaction:Easy-accessible operation menu gets you to the result conveniently. Windows extension:The function facilitates the observation of abnormal signal from full waveform. Snapshot:One click, all measurement value comes from 30 auto-measurement options.
