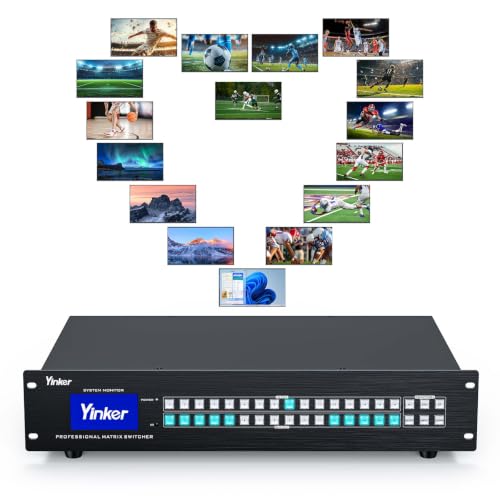

4K HDMI Matrix 16x16 with Web GUI, 4K 30Hz HDMI Matrix 16 in 16 Out Rack Mount Switcher Splitter EDID HDCP

Features

• 16x16 I/O US ADI SolutionYinker 16 in 16 out HDMI matrix adopts the US ADI solution and a 12.75G high-bandwidth chip. With full hardware design (no CPU/OS) and rugged metal housing, it enables fast signal switching, distribution and cross-connection with stable and synchronous transmission, ideal for broadcast control rooms, conference rooms and command centers.
• 4K UHD & Wide Compatibility The matrix switcher delivers maximum resolutions of 4Kx2K@30Hz and 1080P 3D@60Hz/120Hz, and fully supports HDMI 1.4B, HDCP 1.2 as well as Dolby TrueHD, DTS-HD audio standards. Featuring ESD protection (8kV air / 4kV contact discharge), 36-bit true color processing and signal timing reconstruction, it ensures complete signal integrity and outstanding audiovisual performance.

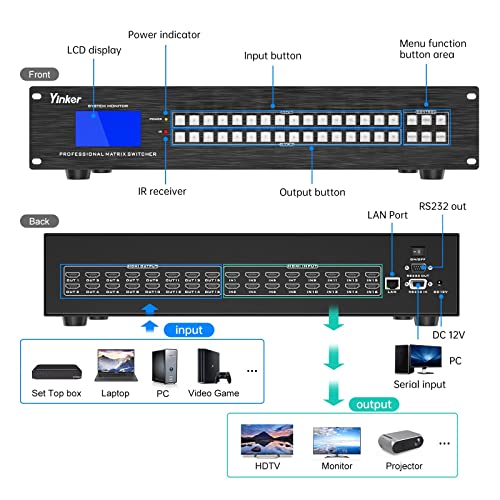

• 6 Flexible Control Local Control: Backlit Buttons, IR Remote. Network & Serial Control (via RS232 & LAN Ports): WEB GUI, PC Software, Android APP, Central Control. Supports 16 savable preset scenes, scene recall and auto cycle display.
• Long-Distance Transmission & EDID Built with input auto-equalization and output gain adjustment, it delivers stable transmission up to 20m for input and 25m for output via HDMI 1.4 cables. It also includes auto EDID adaptation and rewrite for wide device compatibility, plus power-off memory.
• Rackmount Design & Package Standard 2U size with integrated rack ears, fits standard 19-inch racks. Package includes matrix host, US power adapter and cable, RS232 cable, IR remote and driver CD, backed by 1-year warranty and professional technical support.
