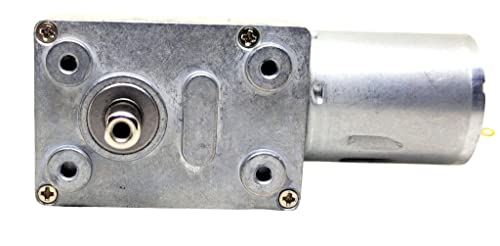

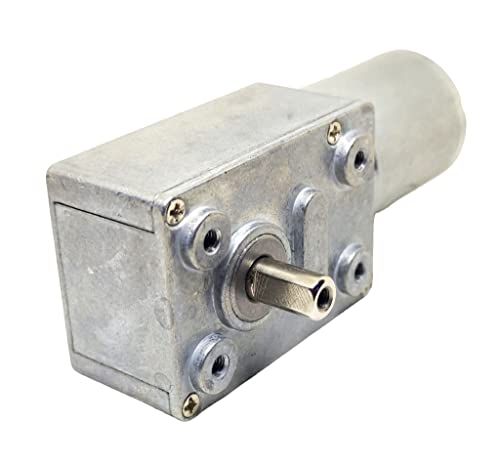

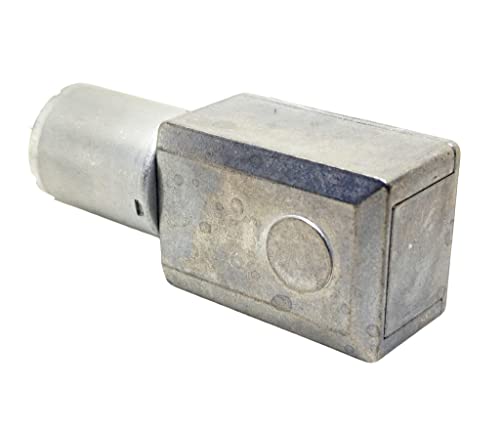

INVENTO 1pcs 5V - 12V 10 Kg-cm 60 RPM DC Motor Worm Geared Gearbox High Torque with 12V - 40V 10A PWM DC Motor Variable Speed Controller

Features

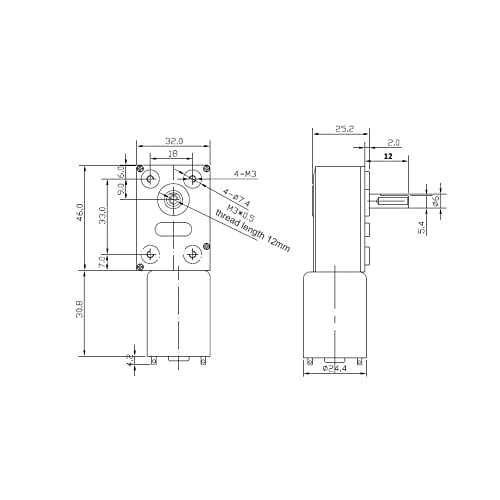

• Voltage : 5V to 12V; RPM : 60; Torque Range: 8 - 10 Kg-cm; Weight- 150 Grams; Shaft Size: 6mm

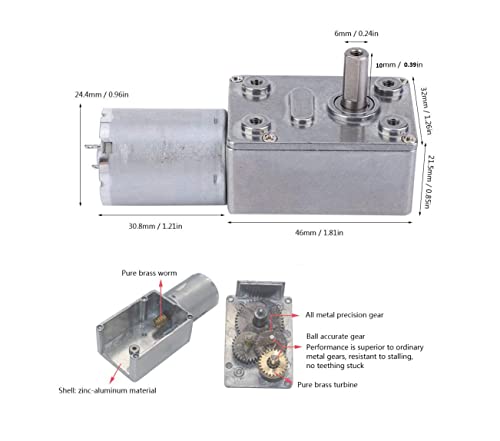

• Output Shaft arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size.
• Using precious metals carbon brush.Long service life, low noise, large torque. Stable and reliable performance.Can rotate and reversal, work more accurate.
• Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity.
• Current : 1.34 Amp (Max); Operating Voltage : 6V - 24V DC; Torque- 176 (g-cm)

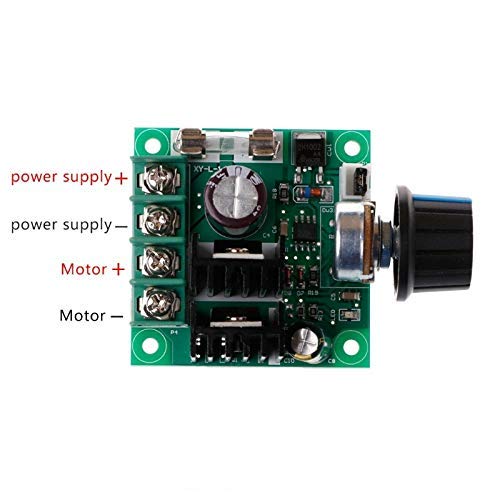

• 1. Connect your DC motor (or DC load) to the motor terminals as indicated. 2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits. 3. You can now control the speed of the motor through potentiometer.
• Control power: 0.01~400W; Static current: 0.02 A (standby) PWM duty ratio:10%~100%; PWM frequency: 13 KHz

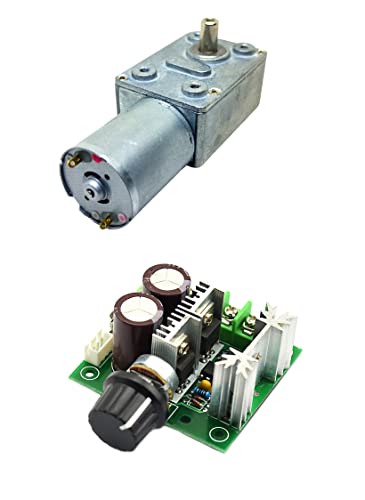

• Package Include 1 x 60 RPM Motor, 1 x 10A PWM
