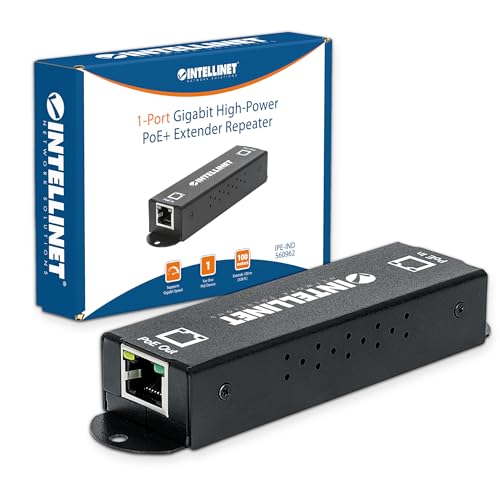

Intellinet Gigabit PoE+ Extender, 1-Port, 25W, IEEE 802.3at /af | IEEE 802.3af /at compliant unit extends PoE links to 328 ft, fanless metal housing, no separate adapter needed

Features

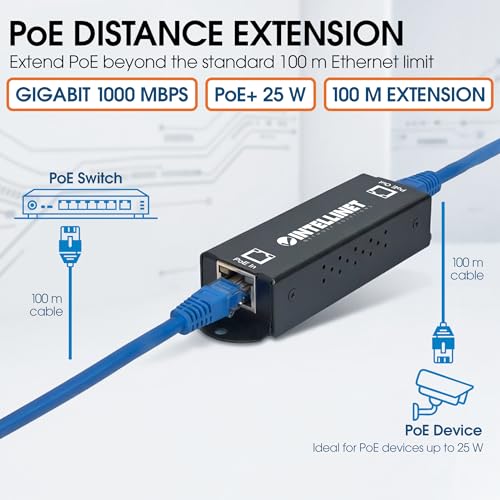

• Extend an existing PoE connection beyond the 328 ft. limit using standard Cat5e or Cat6 RJ45 Ethernet cabling. This 1-port indoor extender repeater carries both data and power farther without requiring a separate local power source.

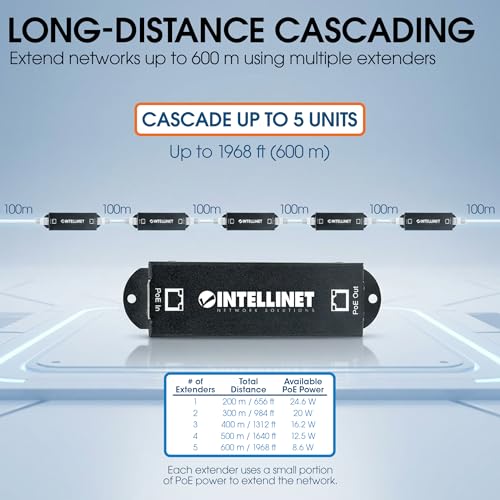

• Daisy-chain multiple units to cover longer cable runs, with support for up to five extenders and a total distance of up to 1968 ft. Ideal for reaching remote network devices where the original PoE span would otherwise stop at 328 ft.

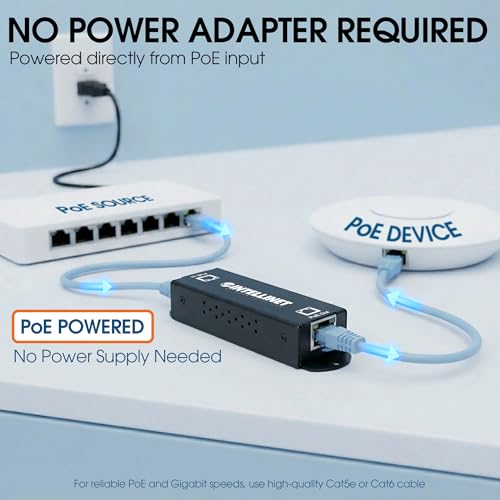

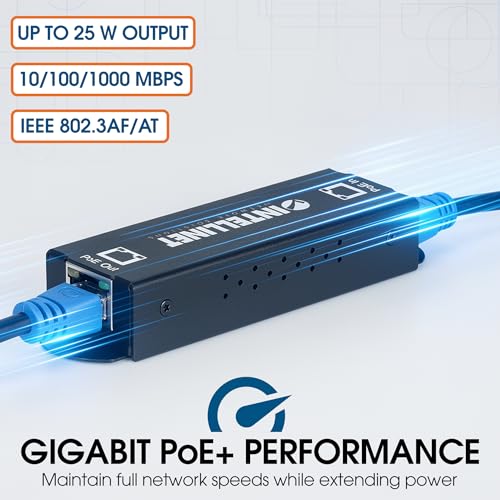

• Supports 10/100/1000 Mbps Ethernet speeds and provides up to 25 W power budget to a connected PoE device. It draws power directly from the incoming PoE line, helping simplify installations by avoiding an added power supply.
• PoE awareness sends power only to IEEE 802.3af and 802.3at compliant devices, while non-PoE equipment receives data only. Compatible with compliant PoE injectors and PoE switches on the input side and compliant PD devices on output.

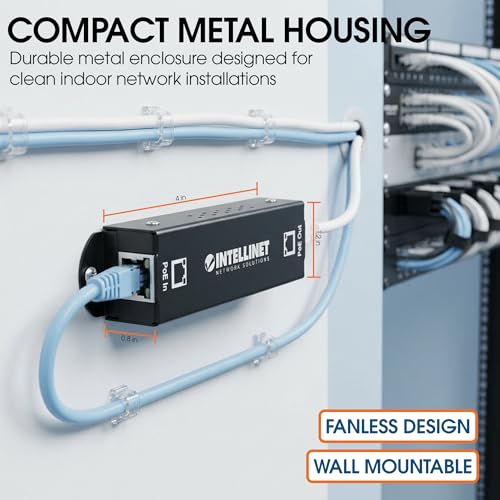

• Compact metal housing measures about 4.05 x 1.22 x 0.79 in. and uses a fanless design for silent operation. Wall-mounting holes and status LEDs for PoE and data make placement and connection checks easier in indoor network setups.
• Designed with one RJ45 10/100/1000 input port for a 48V IEEE 802.3af/at compliant signal and one RJ45 10/100/1000 PoE output port. Supports Cat5 UTP/STP for 100Base-TX and Cat5e UTP/STP for 1000Base-T connections.
• Power available at the far end varies by chain length, including 24.6 W at 656 ft. with one extender, 20 W at 984 ft. with two, 16.2 W at 1312 ft. with three, 12.5 W at 1640 ft. with four, and 8.6 W at 1968 ft. with five.
