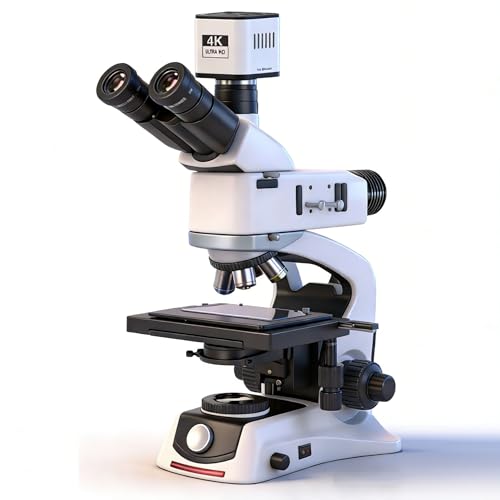

Infinity-Corrected Polarizing Metallurgical EPI Reflected Illumination Vabiooth Trinocular Microscope 50X-500X Mag, 4K Camera with Software, Infinity Achromatic Objectives,3-Layer Mechanical Stage

Features

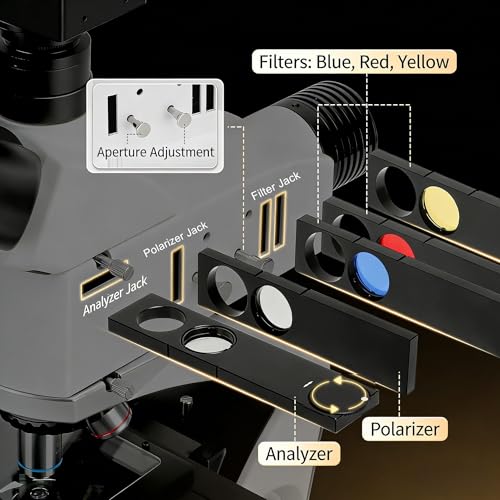

• This advanced metallurgical microscope features a state-of-the-art LED Dual-illumination system for superior, cool, stable, and long-lasting brightness. Its true power is unlocked with the included polarizer, analyzer, and RGB (Red, Yellow, Blue) filter set. Observe materials in brilliant cross-polarized light to reveal crystal grains, stress patterns, and microstructure invisible to standard microscopes. Switch between the color filters to enhance contrast, distinguish different phases, and achieve professional-grade color metallography. Perfect for materials science, failure analysis, geology, and electronics inspectionits a complete lab-grade imaging solution ready for detailed analysis

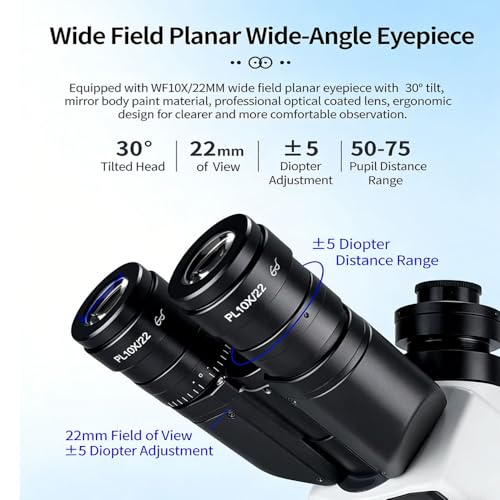

• [Infinity Optical System Objective & 22mm Flat Field Eyepiece]: The objective optical path is parallel, offering wide, flat imaging with over 95% clarity and improved resolution, offers crisp, clear, sharp images.PL10X/22mm Wide field Flat-Field Eyepieces effectively eliminate field curvature, providing a flatter and clearer view with significantly improved edge image quality. The turret's reversed orientation provides more working room above the stage.

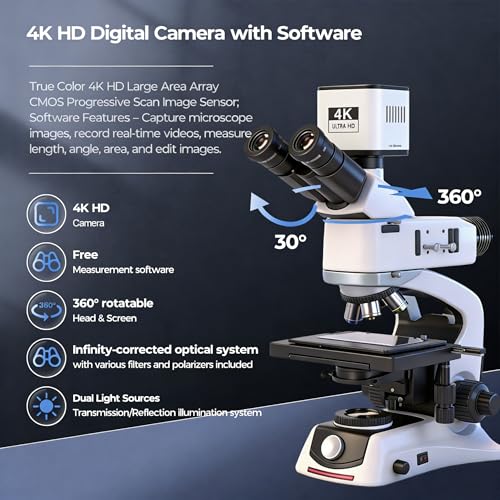

• [4K Camera]: Supports 4K HDMI ultra-clear transmission with a resolution of 38402160. Equipped with built-in imaging software, no additional PC or software is required. Simply connect to a display and operate the camera via a mouse to achieve functions such as photo measurement and image comparison (including mirroring, freeze, wide dynamic range, digital zoom in/out, auto-edge detection, split-screen comparison, etc.)

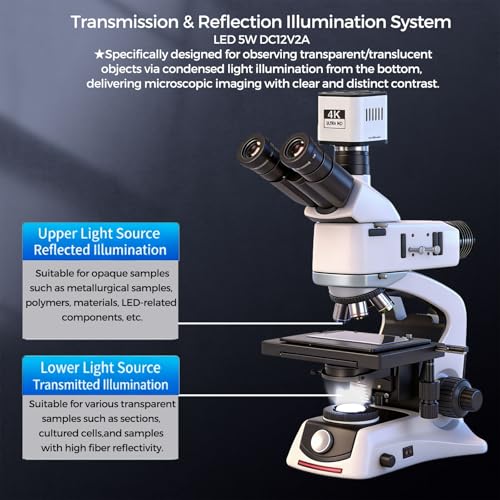

• [LED illumination & Abbe Condenser]: Kohler 5W LED Transmitted & Reflected-illumination 1.25 NA Abbe condenser with iris diaphragm for clear examination and light control. Equipped with an independent lifting knob for controlling light convergence and divergence, with an adjustable aperture for 0-100% light intensity control.

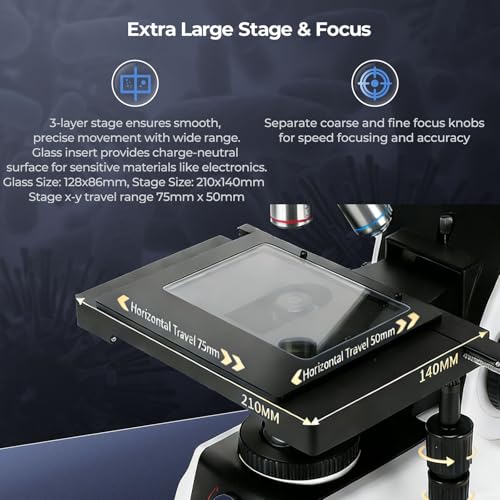

• [Extra Large Stage & Focus]: 3-layer mechanical stage provides smooth and precise movement for examination of specimens, with a large translation range for viewing larger samples. A glass stage-insert provides a charge-neutral surface for examining electonics and other sensitive materials.. Separate coarse and fine focus knobs for speed focusing and accuracy.The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Symmetrical focus controls are coaxially mounted for fast, intuitive focusing.
