FoMaKo 4k HDMI Video Mixer Switcher,4xSDI&4xHDMI Input,5.5 Inch FHD LCD Screen, 5-Channel Multi-Cam Live Streaming Switcher, 4K 60FPS Input, 1080p 60FPS Output,Support PTZ Controller, M4

Features

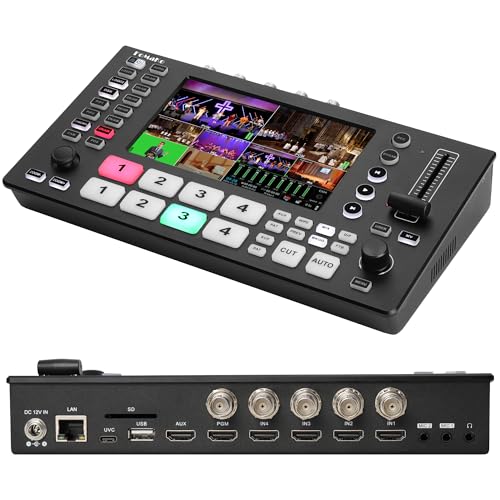

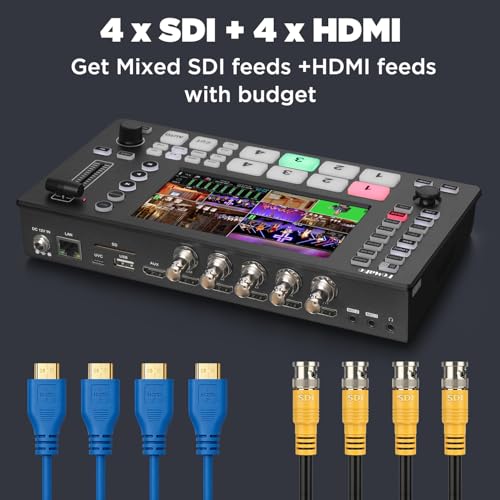

• FoMaKo M4 SDI+HDMI FeedsFoMaKo M4 is a 5-CH 4K Video Switcher, Video Input: 4xHDMI inputs and 4xSDI inputs,1xUSB input(USB/SD Recordings) Video Output: 1x SDI PGM output,1xHDMI PGM output,1xHDMI AUX output,1xUSB 3.1 lossless output for plug and play live streaming,perfect for Church live service, Studio, education, Live Streaming, Broadcast and houses of worship.(4K 60FPS and 1080p 60FPS Input, 1080p 60FPS Output. )*Note: NDI Upgradeable, We can help to upgrade it if required.
• Broadcast-Grade Audio HubBoasting 4HDMI, 4SDI, multimedia and dual 3.5mm microphone analog audio inputs plus one headphone output for flexible audio monitoring. You can select monitoring audio sources including PGM main output, HDMI/SDI embedded audio, mic inputs and multimedia AUX, and adjust monitoring volume from -60dB to 0dB. Every audio channel supports independent volume, mute, mixing and delay configuration, and HDMI & SDI audio work with Audio Follow Video (AFV) mode to realize smooth live scene switching.
• Dual Recording &PlaybackEquipped with a built-in media player with adjustable playback bit rate (120), supports H.264 encoding, independent bitrate settings for recording and multi-network streaming, and simultaneous SD+USB dual recording. It enables concurrent live streaming, video recording, and loop playback, with customizable save paths for footage. Recorded files on SD/USB can be loaded as a 5th AUX video source for instant replay during live production.
• PTZ Joystick Camera Control & Preset Position RecallIntegrated PTZ joystick, 5-way adjustment knob let you freely pan, tilt and precisely maneuver connected cameras. directly tweak camera focus, exposure, white balance and more via the onboard camera menu. It also supports saving up to 6 camera preset positions; simply activate your camera and hit the ON AIR 1~6 buttons for one-tap instant recall of pre-saved shooting angles during live streams.

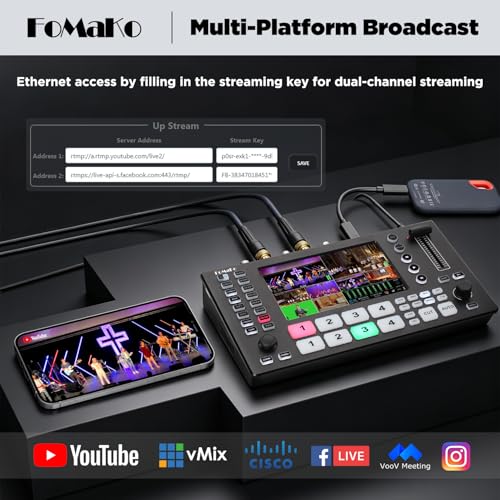

• Streaming Solutions& high Compatibilitysupports 2 simultaneous IP streams to major social media platforms and production software,like YouTube, Facebook, Twitch, TikTok, OBS, and vMix. the USB 3.1 UVC plug-and-play streaming, the built-in Web UI offers seamless remote configuration and control, allowing you to manage your streaming settings directly from computer, smartphone, or tablet.
• Pro Multi-Layer Overlay Superimposition Up to 8 layer Superimposition of PGM including 2xPIP,Chroma,Luma,DSK,2xLOGO,PAT.All layers support separate position, size and transparency adjustment. Real-time hardware composition delivers zero-latency broadcast-grade visuals for e-commerce live streaming, virtual studio and online conferences.
• 5.5 Inch Display with intuitive control Featuring a vivid 5.5-inch HD display, enabling real-time monitoring of multi-source feeds and intuitive menu navigation, with a high-visibility interface for instant status assessment. User-customized configurations support one-touch recall, while a dedicated lock/power toggle prevents operational errors in critical production scenarios.
