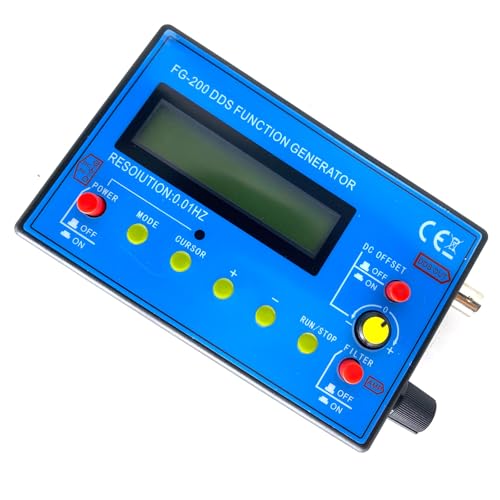

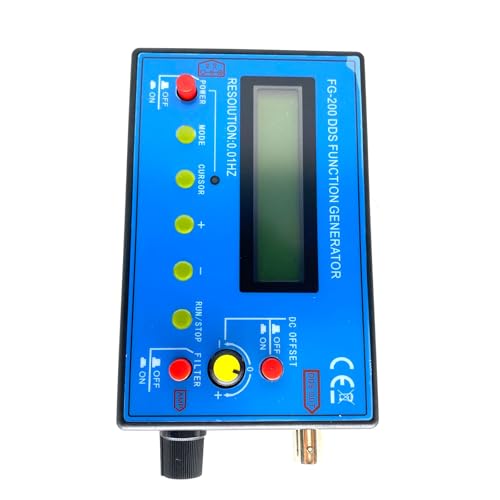

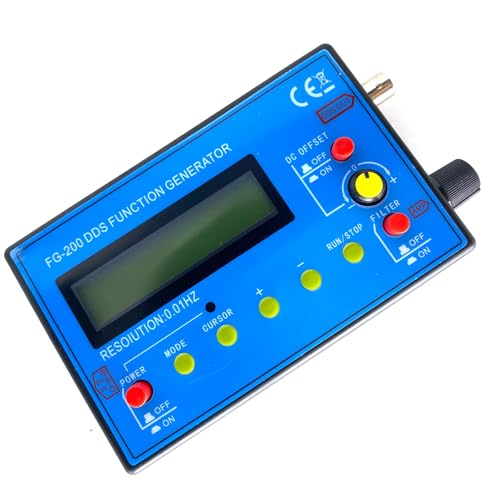

FG-200 DDS Function Signal Generator 0.01Hz -500Khz Frequency Counter Signal Source Module Sine+Square+Sawtooth Waveform

Features

• Combined with oscilloscope, it can be used for electronic circuit test and debugging, frequency characteristic and impulse response test and measurement of audio amplifier. Because DDS has good accuracy and frequency stability, it is also very suitable for oscilloscope scanning time factor calibration. The square wave output is suitable for oscilloscope attenuator and probe pulse characteristic adjustment. Has filters to accommodate the output of sine wave and pulse wave.
• DC4-9V power supply is recommended when using adapters, and 3.7V lithium batteries are recommended when using battery power. Current :180MA, voltage 5V, DC bias: maximum 10V, with shutdown function. All Settings can be saved. There are filters that can be turned on and off, which can be well adapted to sinusoidal and pulse waveform output
• Frequency range: sine wave 0.01Hz-500.00 kHz(with the further increase of frequency, the output amplitude will decrease), other waveforms 0.01Hz-100.00 khz(but does not limit the upper limit of adjustable frequency, if the distortion and jitter requirements are not high, the use of frequency can be further increased).

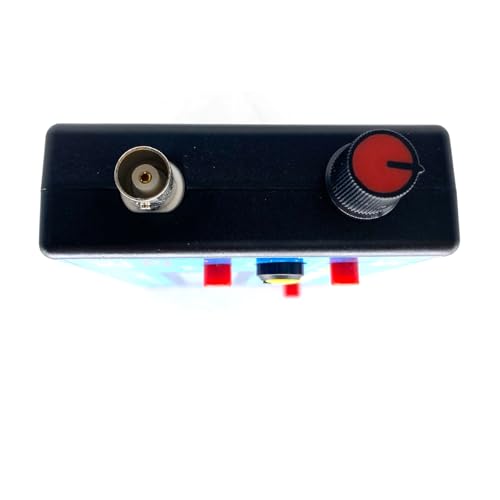

• MODE: The mode key is used to change the output waveform. RUN/STOP: runs or stops the waveform output. When the cursor does not blink, output waveform. DCOFFSET: DC bias switch, adjust the DC component of the signal by pressing the yellow knob ON. Ejected to OFF, the DC component of the signal is 0. FILTER: Filter switch, when the signal is close to more than 300K sine wave, press this button, the waveform will be clean. AMP: Side keys adjust signal amplitude
