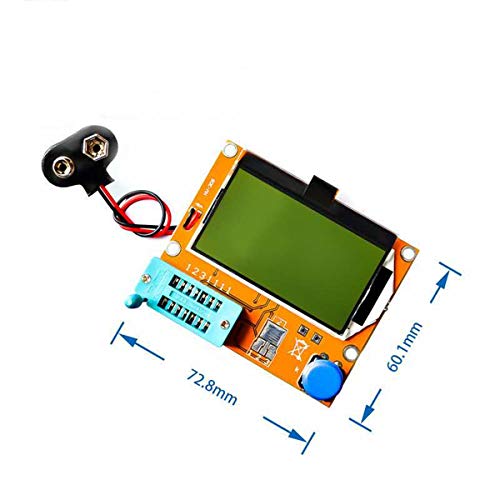

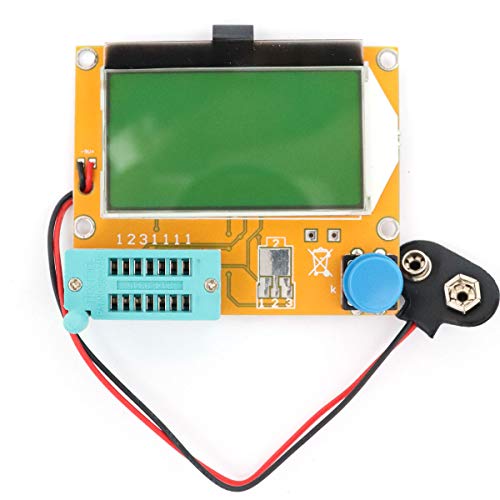

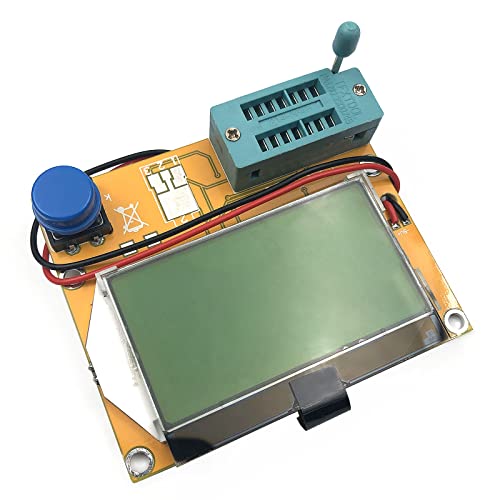

FainWan Multifunction LCR-T4 Mega328 Transistor Tester Diode Triode Capacitance ESR Meter MOS PNP /NPN M328 with Inductance Capacitor ESR Testing Function Green Backlight LCD Display

Features

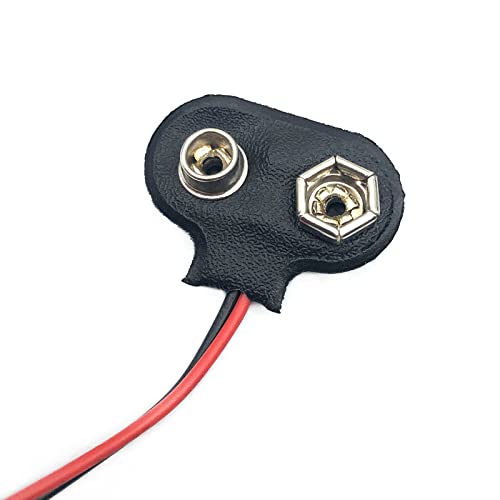

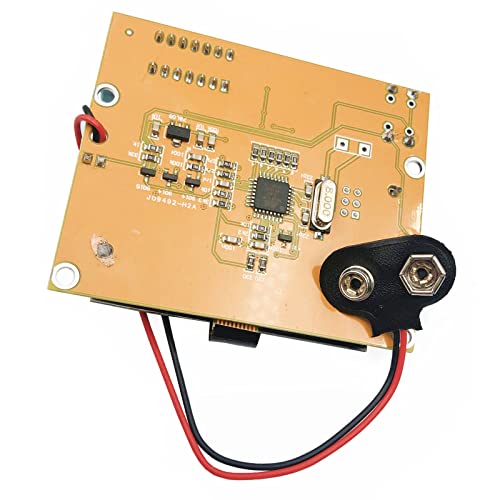

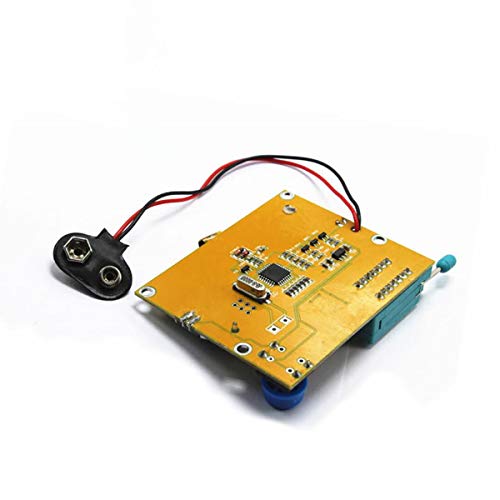

• M328 version of the software ,more functions(Chip: Atmega328).128*64 big Backlight LCD display,only 2mA when stand by.Using 9V battery (Not included). Use 12864 liquid crystal display with green backlight.
• Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4 . Resistance symbol on both sides shows the pin number.So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin.
• Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components. Automatic test the pin of a component, and display on the LCD.
• Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin. It can measure the collector or emitter junction reverse capacitance .
• Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor. Automatic identification components pin arrangement .
