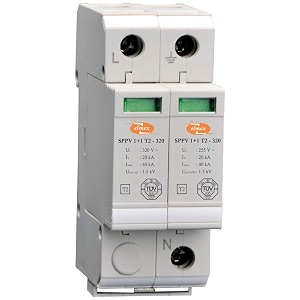

Elmex SPPV1+1T2-320N AC Surge Protection Device (SPD) | Type 2 | 1+1 Pole | 320V AC | 20kA /40kA | DIN Rail Mount | Lightning & Surge Protection

Features

• TYPE 2 AC SURGE PROTECTION: Elmex SPPV1+1T2-320N is a 1+1 Pole Type 2 / Class II AC Surge Protection Device (SPD) designed to help protect electrical installations and connected equipment against transient overvoltage caused by lightning and switching surges.
• 320V AC SINGLE-PHASE APPLICATION: Designed for 230/415V AC electrical systems with a maximum continuous operating voltage of 320V AC and 255V AC N-PE, making it suitable for single-phase power distribution and electrical panel applications
• 20kA / 40kA SURGE CAPACITY: Provides 20kA nominal discharge current (In) and 40kA maximum discharge current (Imax) for handling high-energy transient surge events and improving protection of downstream electrical equipment.
• FAST RESPONSE & LOW VOLTAGE PROTECTION LEVEL: Features a response time of 25 nanoseconds and voltage protection level of 1.5kV, helping limit transient overvoltage before it reaches sensitive electrical and electronic equipment.
• DIN RAIL MOUNTING WITH STATUS INDICATION: Designed for convenient 35mm DIN rail installation, with Green/Red operating and fault indication. Supports 435mm conductors and features a UL94-V0 thermoplastic enclosure with IP20 protection.
