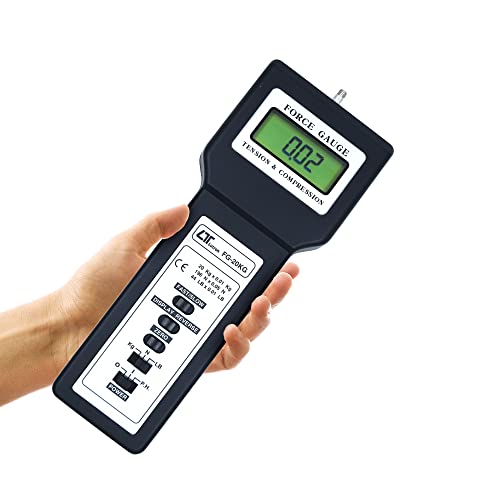

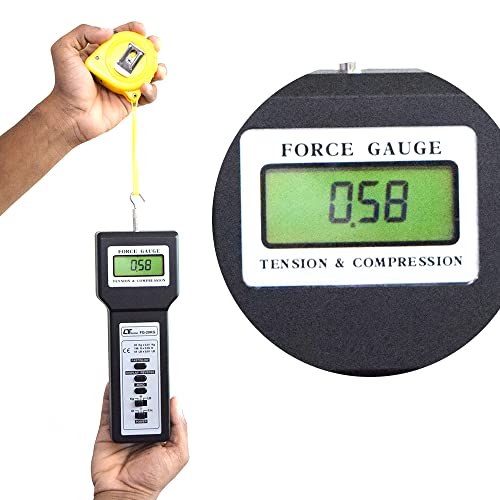

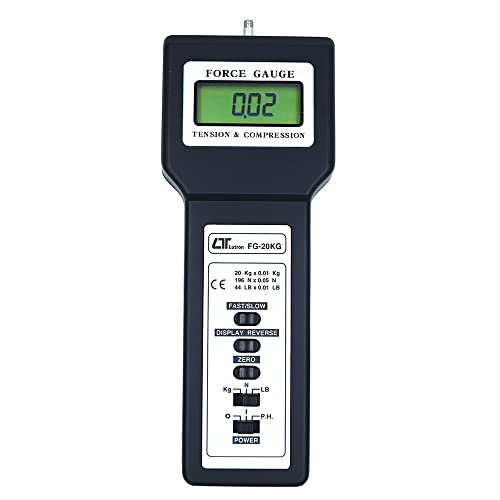

Electronic Digital Force Gauge (Range: 20Kg) for Tension Spring | Peel Testing | Push Pull Force Gauge | Compression Spring | Alongwith Factory Calibration Certificate | Model: FG- 20KG

Features

• Digital Force Gauge Features: Wide capacity, high resolution, high accuracy, high repeatability | 3 kind display unit | Tension & compression capability | Peak hold (Max. load) can be held in display during make tension or compression measurement | Zero button can operate both for normal measuring & the " peak hold " operation | Full capacity zero (tare) control capability | Fast/Slow response time push button
• Positive or reverse display direction select | Full line accessories (adapters) are included | Handheld & stand mounting available | Low power consumption gives long battery life | Build in low battery indicator | Microprocessor circuit & exclusive load cell transducer | Overload protection | RS-232 computer interface (optional) | Professional test stand (optional)
• Measuring Range: 20 Kg | Accuracy: (0.5% + 2d), within 23 5 | Resolution: 0.01 Kg/0.01 LB/0.05 Newton | Display: LCD 5 digits, 10 mm (0.4") digit size | Function: Tension & Compression (Push & Pull). Normal force, Peak hold (Max. load)

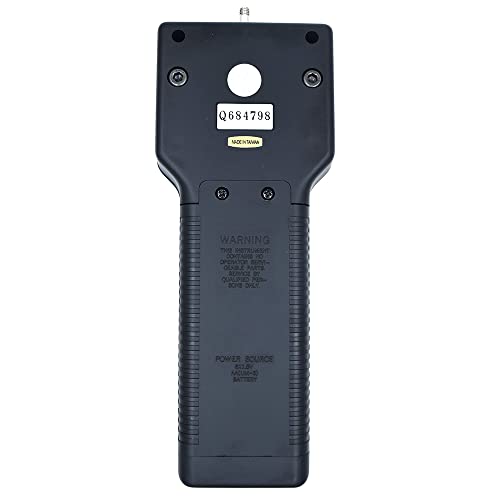

• Operating Temperature: 0 to 50 ( 32 to 122 ) | Operating Humidity: Less than 80% RH | Mounting hole: Mounting holes are provided on the back case, easy stand mounting | Computer Interface: RS-232 | Overload Capacity: Max. 30 kg | Power Supply: 6 x 1.5 V AA (UM-3) size battery | Power Consumption: Approx. DC 24 mA.

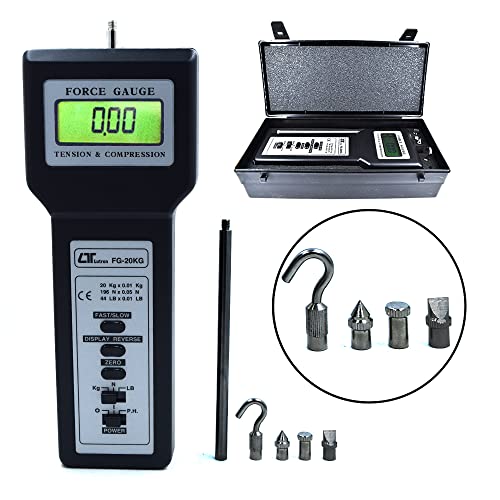

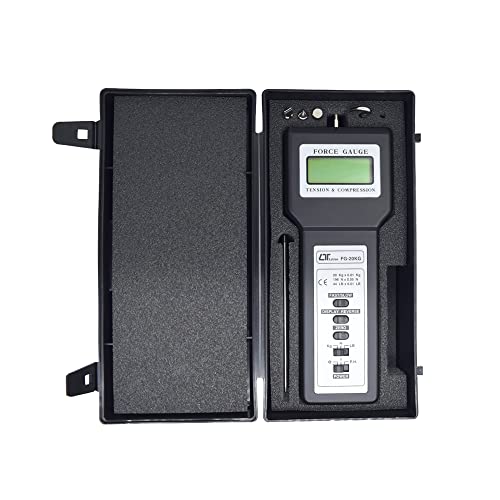

• Supply Scope: 1 unit of FG-20Kg Meter, Flat-head adapter, Hook adapter, Cone head adapter, Chisel head adapter, 120 mm extension rod, Hard Carrying Case, Operational Manual, Factory Calibrated Certificate | Applications: Bearing Torque, Torsen Spring, Tension Spring, Burst Testing of Packaging Materials, Switch Activation Force Testing, Closure torque Testing, Compression Spring, Tablet Crush, wire Terminal, Peel Testing
