Digital Oscilloscope ADS804A 70 MHz Bandwidth OWON 4 Channel Oscilloscope with 12bits Vertical Resolution and 700,000 Wfms /s Waveform Capture Rate Oscillograph

Features

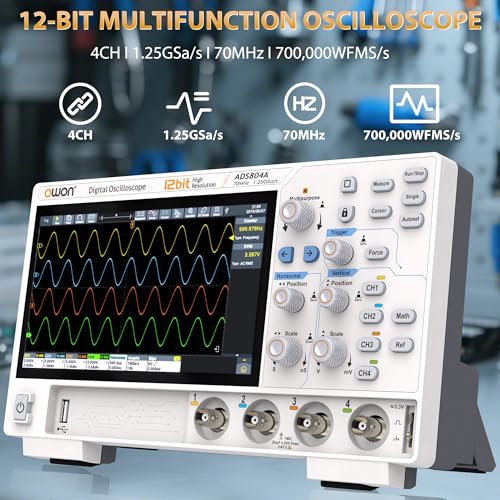

• Parameters70MHz bandwidth with four channel; 1.25GSa/s real-time sampling rate, 50M storage depth, up to 700,000wfms/s waveform refresh rate, ensuring clear signal capture;12-bit Vertical Resolution, Vertical Sensitivity: 500uV/div-10 V/div

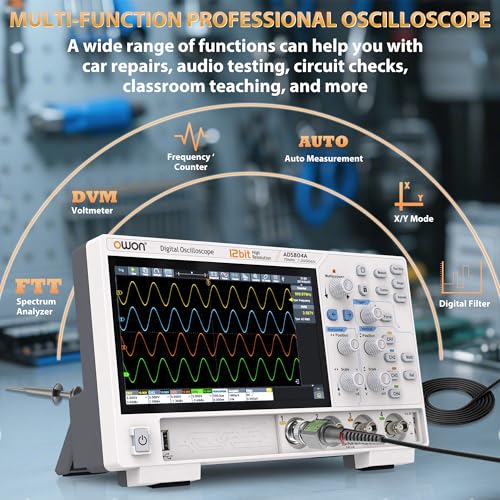

• Multiple-function: Integrated with oscilloscope, frequency counter, voltmeter and FFT spectrum analyzer;12-bit High-Resolution Oscilloscope, Adopted 4096-level vertical resolution,capturing uV-level signal fluctuations;1M- point FFT analysis ensures accurate frequency component display

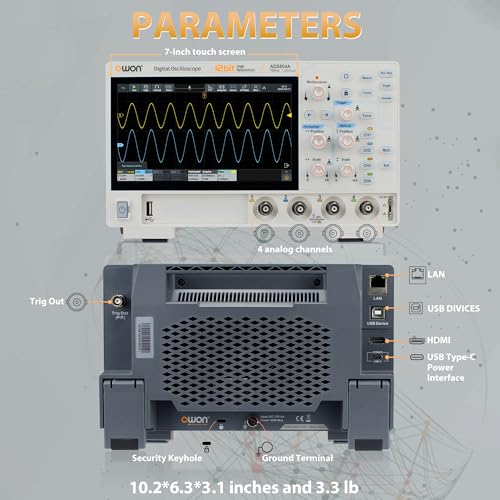

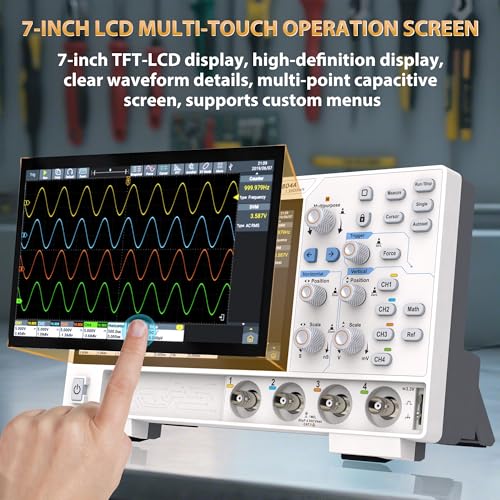

• 7-inch touchscreen with multi-touch; Ultra-thin device design saving your workspace; Support for external devices like mouse and keyboard, greatly enhancing your efficiency;Communication Interface: HDMI, USB device, USB Host, Trig Out(P/F), LAN; Support rich triggering, like edge,video,pulse width,slope, Nth edge, logic and so on
• Features: Support 43 Auto measurements with advanced math functions; Built-in glossary of technical terms for quick auto measurement setup; Parametric Statistics, supports measurement indicators, cursor gating and richer measurement prompts; Cursor Gating with Visual Indicators, supports zoom windows, FFT and XY modes
• For signal integrity verification and circuit fault identification to facilitate troubleshooting; supports digital circuit design and debugging: performs logic analysis, and utilizes triggering and decoding capabilities (RS-232/UART, I2C, SPI, CAN, LIN, SCPI, etc.) to capture and decode communication data on buses; conducts automotive electronics sensor and actuator testing; transforms abstract electrical signals into intuitive graphical representations, enabling more efficiently working
