Digital Insulation Resistance Tester 1999 Counts Megohmmeter AC DC Voltmeter 250 500 1000V 2G Ohm Insulation Resistance Backlit LCD Data Hold and High Voltage Indicator

Features

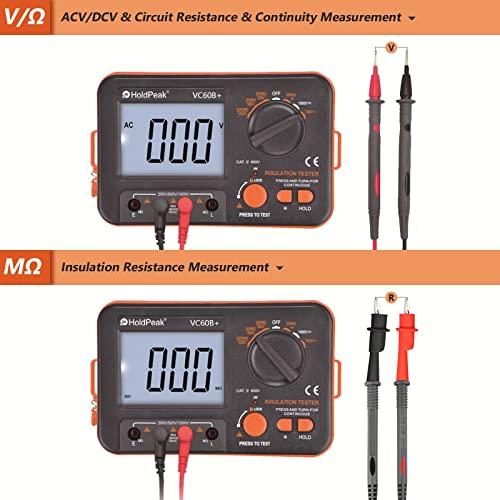

• Insulation Resistance Tester: The Insulation Resistance Tester can measures AC Voltage 1V to 750 V(ACV Frequency 50Hz to 200Hz), DC Voltage 1V to 1000 V and Resistance 0 to 2 K. Measure insulation resistance from 1M Ohm to 2000M ohms with test voltages of 250V, 500V, or 1000V, which can be selected by manually rotating the knob to select.
• Wide range &High Accuracy: The highest Insulation resistance measurement range can reach up to 2G. High Accuracy: 250V/500V: 0 ~ 200M (4.0%+2); 1000V: 0 ~ 2000M (4.0%+2). Matching probes and crocodile clip accessories can help measure the resistance of various components or accessories.

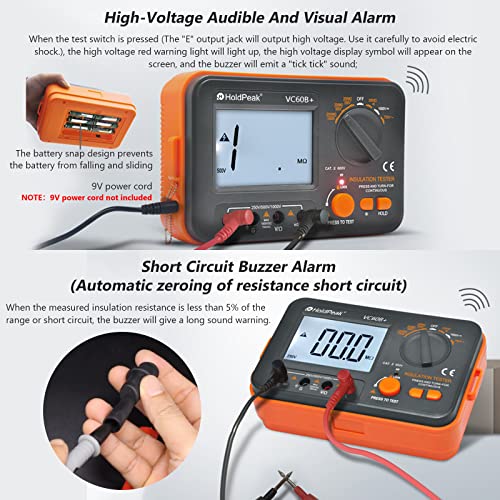

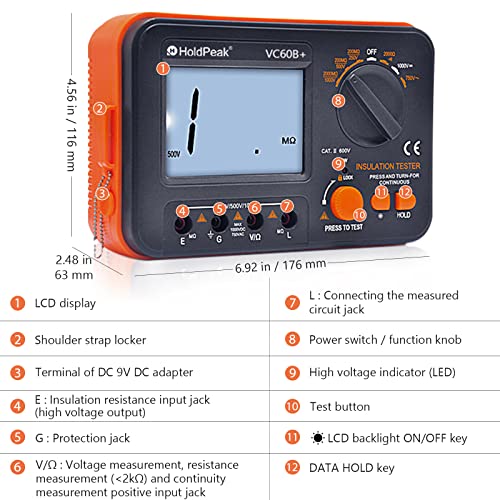

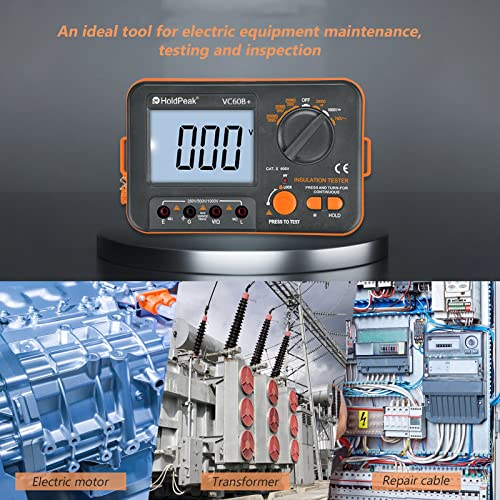

• Multi-Function Tester: With Over range Indication, Data Hold, Low Battery Indication, Backlight LCD, high voltage buzzer alarm, high voltage red light alarm, and short circuit buzzer alarm.Suitable for measuring insulation resistance of various types of electrical equipment and insulation materials such as transformers, cables,switches,and electrical appliances.

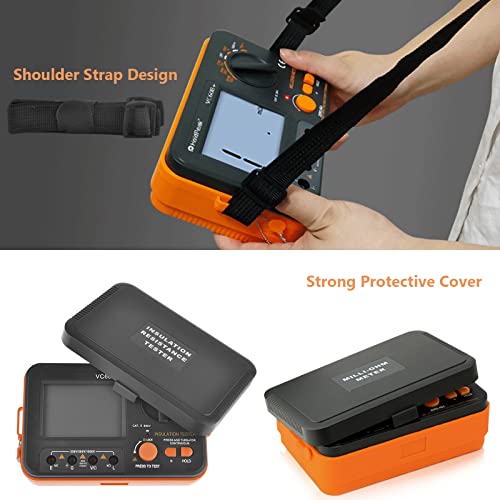

• Shoulder Strap Design & Strong Protective Cover: The insulation resistance tester has stable performance. The shoulder strap design allows for two-handed operation. The sturdy protective cover design can better protect the operating panel, and the non-slip design on both sides can prevent the resistance tester from slipping from the hands.
• Power: The Megohmmeter can not only be powered by six 1.5V AA batteries (included), but also be connected to an external 9V DC power cord (not included) to provide electrical energy. Megohmmeter suitable for measuring the insulation resistance of various electrical equipment and insulating materials.
