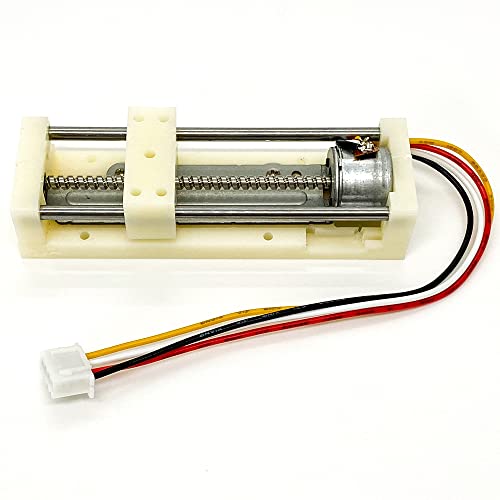

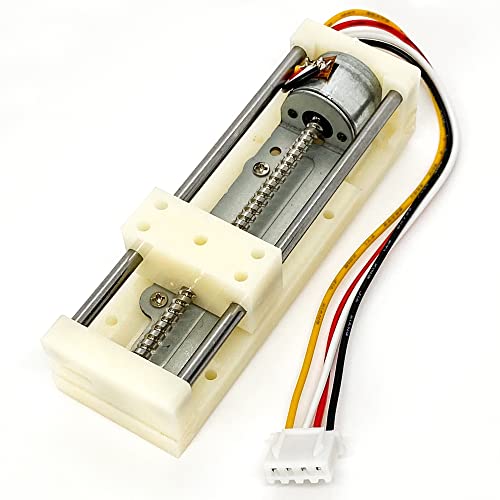

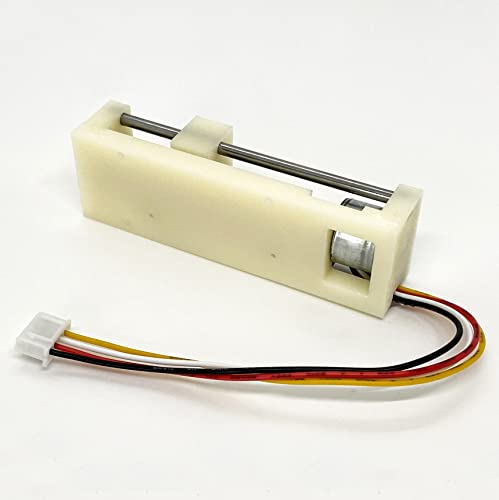

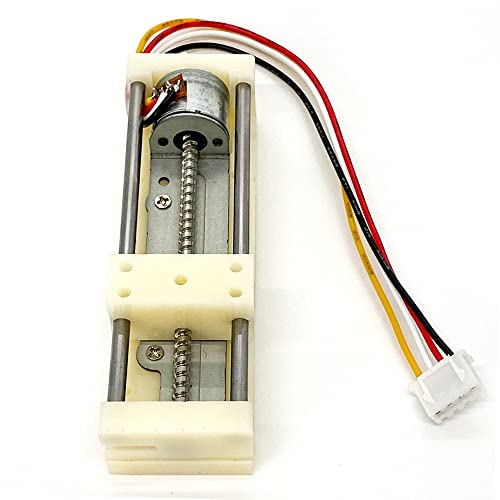

DC 5V Micro 2-Phase 4-wire Stepper Motor Linear Rail 55mm Stroke Linear Stage Actuator Lead Screw Slider Stepping Motor Small Electric Motor

Features

• Fine Design: This rail and linear block are small and light, especially suitable for small teams. The tool is simple and easy to use, strong and durable.

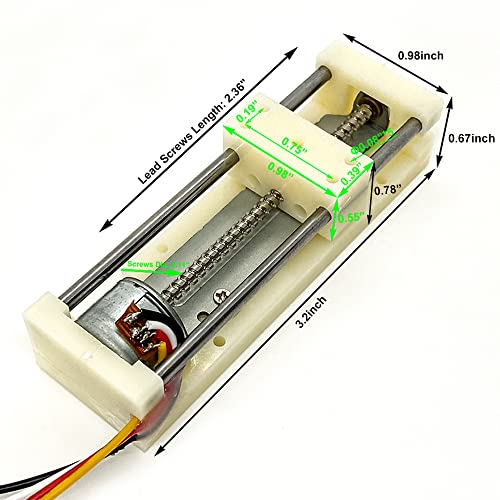

• Technical Data: Drive Voltage: 5V-12V / 100-300mA; Step Angle: 18 degrees; Stage Total Size: 3.2"x0.98"x0.78" (including motor); Sliding Block Size: 0.98"x0.39"x0.55"; Motor Diameter: 0.59"; Motor Length: 0.43"; Lead Screws Length: 2.36" ; Lead Screws diameter: 0.11"; Effective Slide Stroke Travel: 1.89"; Wire length: 4.72".
• Note That: This stepping motor direct power is not rotating, it need to stepper motor driver board. Search "B09BTWQPTB" to purchase it. Wiring method: Yellow A+, White A-, Red B+, Black B-.
• Application: Stepper motor guide linear slide table can be used for DIY small slider projects, measuring equipment, laser printer, etc.
• Service: If you have any questions or encounter any problems while using this motor, please contact us proactively. We will reply promptly during working hours and do our best to solve your problem.
