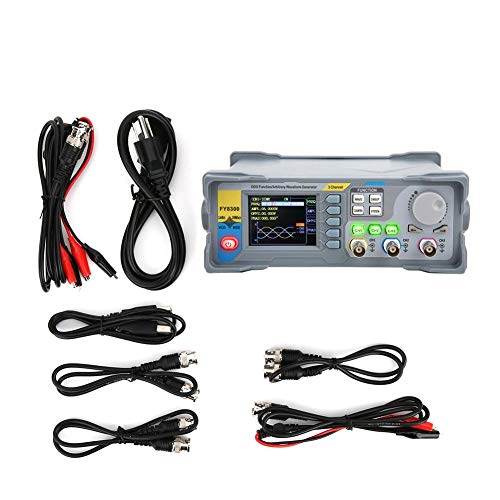

3-Channel DDS Function Generator with Arbitrary Waveform, Frequency Meter, 4-Channel TTL Output (Up to 30MHz, 100-240V, US Plug)

Features

• 3-Channel Independent Output: Completely independent 3-channel output (equivalent to three independent sources), capable of working synchronously, with precisely adjustable phase difference, display 3-channel output state at the same time. When the tracking is on, all parameters of the 3 channels can be updated at the same time according to the user's configuration
• DDS Direct Digital Synthesis Technology: Adopt DDS direct digital synthesis technology to produce accurate, stable and low distortion output. With digital output function, can realize any CMOS level with amplitude of 0-12V
• and Display: Using 2.4-inch (320 x 240) color display, with . All parameters can be calibrated by internal procedures. Powerful communication function, which can be controlled by PC. Output short circuit protection, all output terminals can work more than 60S under load short circuit
• Parameter Save Function: Press and hold the OK key during use, you can quickly save the parameter information currently output by the instrument, and the saved parameters can be automatically loaded at the next boot. Can be downloaded to the instrument output waveform after editing arbitrary waveform on PC
• 64 Groups Arbitrary Waveform Storage: With 64 groups of arbitrary waveform storage bits, each group has a storage depth of 8192 x 14bits. The longer the waveform storage depth, the more waveform details are saved, and the details can be restored with high precision
• Frequency Meter and Counter Function: Built-in 100M frequency meter with four measurement methods including frequency measurement, period measurement, positive and negative pulse width measurement, and duty cycle measurement. Maximum measurement frequency can reach 100MHz with minimum measurement frequency of 0.01Hz
• Wide Frequency Range and : Maximum output frequency of 60MHz for sine waves with sampling rate of 250MSa/s and vertical resolution of 14bits. Frequency accuracy of 10-6 orders of magnitude with full range frequency resolution of 1uHz (0.000001Hz)
