BIQU EBB36 CAN Adapter Board Hot End PCB Board Filament Break Blockage Detection for 36 Stepper Motor Extruder Nozzle Head Tool for Blv Ender 3

Features

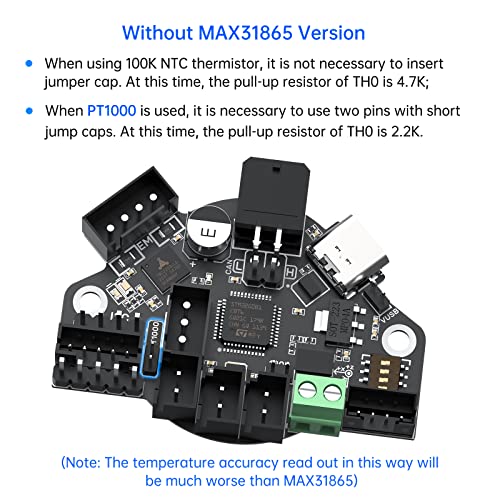

• Smart Upgrade: Onboard MAX31865, support 2-wire/4-wire PT100/PT1000 selection, support CAN or USB communication, among which CAN terminal resistance 120R can be selected by jumper cap, and reserved CAN expansion interface, reserved RGB interface , to meet the lighting needs
• Easy to Use: It is a 36-step (42-step) motor extruder nozzle adapter board, which can communicate through USB or CAN, which greatly simplifies wiring. BOOT and RESET buttons are reserved on the motherboard, users can enter DFU mode through USB to update the firmware
• Superior Security: The EBB series has been optimized in multiple dimensions in terms of security. USB power-on is selected by jumper cap, which effectively isolates the DC-DC and USB 5V of the main board, and increases the protection circuit of the thermistor part to avoid the burning of the main control chip due to the leakage of the heating rod. The USB port adds an ESD protection chip to prevent the main control from being damaged. Electrostatic breakdown of the USB port
• Rich Expansion Functions: I2C interface is reserved. This port can also be used for material breakage, material blocking detection, or DIY operations for other functions. The factory is equipped with terminals, female reeds, double-way studs and screws for Meet the DIY needs of customers
• About Product Question: Q: When updating firmware, it may be a risk that the heater sticks keep heating up A: please pay attention to disconnect the main power VIN of the hotend when using the DFU of Type-C port to update the firmware, or ensure that the firmware update is completed soon and goto the normal working mode. Never keep MCU in DFU mode for a long time when the main power supply and hotend are connected
