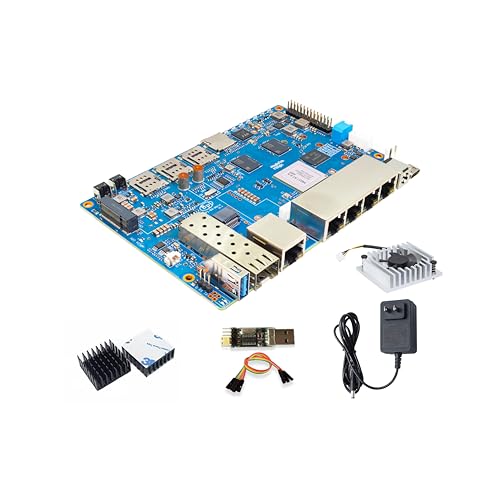

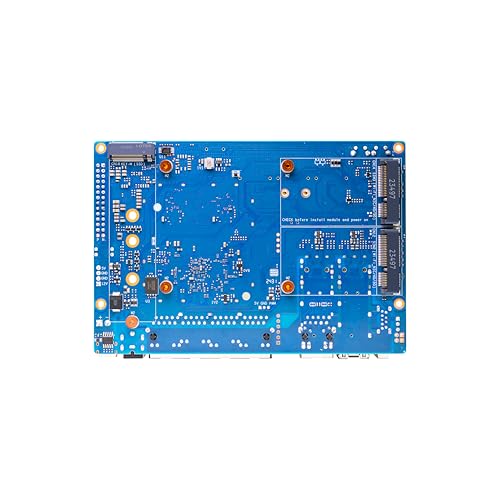

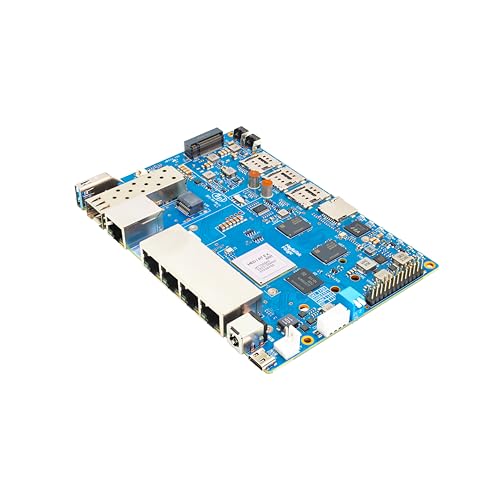

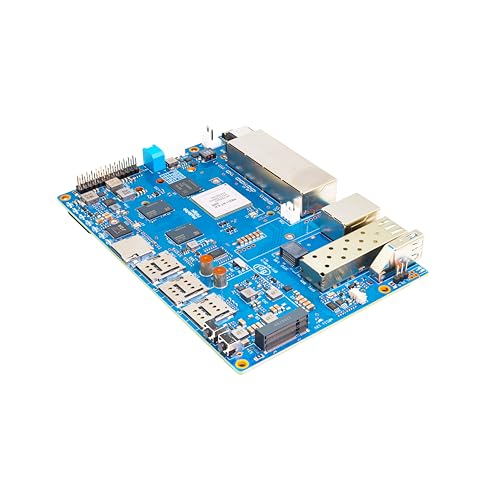

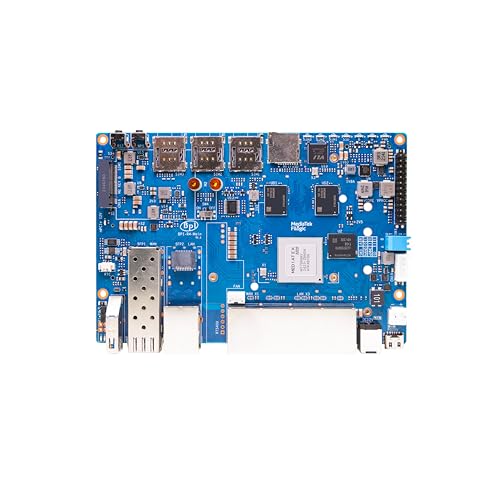

Banana Pi BPI-R4 WiFi 7 Wireless Dual-Band WiFi Router Board OpenWRT, with MediaTek MT7988A (Filogic 880) SoC, Support 2X 10GbE SFP and 4X GbE Gigabit Ethernet for NAS Smart Home Gateway (POE SET1)

Features

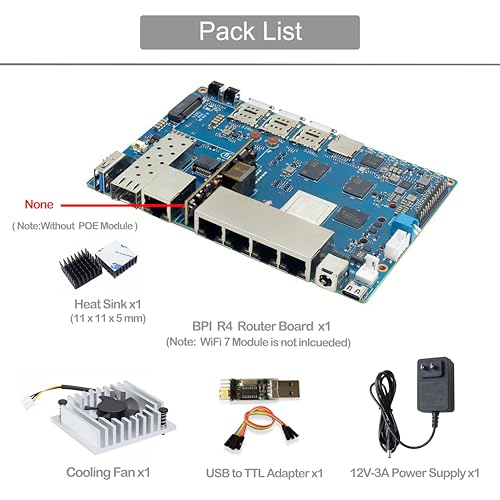

• Note: Banana Pi BPI-R4 POE version can not be used with the BPI-R4 regular metal case The factory default NAND burned 1x2.5G version of the factory firmware, if you need to burn your own use, please use the official docs on the SFP replaced with 2.5Gbps version using images. OpenWrt official snapshot image does not support POE version BPI R4, you need to debug and develop by yourself.
• [MediaTek MT7988A CPU] Banana Pi BPI-R4 Router Board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 CPU design, 4GB DDR4 RAM 8GB eMMC and 128MB SPI-NAND flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board.
• [High Performance Chips] The MediaTek MT7988A SoC is the world's leading network processing platform that delivers a high-performance and reliable network experience for wired and wireless applications. At the same time, the MT7988A is equipped with MediaTek's Tunnel Offload Processor System (TOPS), which easily handles a wide range of tunneling protocols.
• [Support 10Gbe SFP/2.5G RJ45/4X Gbe] Banana Pi BPI-R4 wireless dual-band wifi router board support 1x 10Gbe SFP, 1x 2.5G RJ45 and 4x Gbe ethernet with 4 Port 10/100/1000Mbps Gigabit Ethernet port, also with USB3.2 port and M.2 interface, support 4G/5G signal reception and NVME SSD.Providing the fastest and most reliable network connection.
• [Support WiFi7 iPA NIC Module] Banana Pi BPI-R4 wireless three-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). MediaTek MT7988A enables seamless Wi-Fi 7 tri-band, 2.4GHz, 5GHz and 6GHz connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC.
• [Rich Peripheral interfaces] Banana Pi BPI-R4 wireless router board onboard 1x 10Gbe SFP Optical ports, 1x 2.5G RJ45 port, 4x Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 5G, 1x M.2 KEY-M connector for 2280 NVME SSD, mPCle Slot for Wi-Fi NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO, supports UART, I2C, SPI, PWM, I2S.
• [Application Scenarios] Banana Pi BPI-R4 Router Board can be applied to Internet service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home security Gateway, Home Automation, Nas device, Gaming Wifi Routers, Network and Communication Applications. It can be used as 36Gbps Wi-Fi 7 Access Point Router Gateway.
• [Wiki] SDK Document: "wiki.banana-pi.org/Banana_Pi_BPI-R4"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
