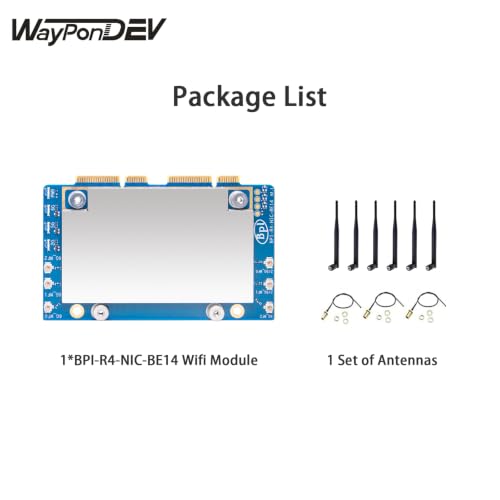

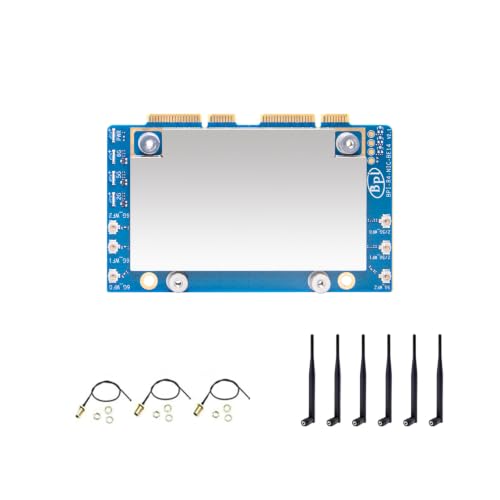

Banana Pi BPI-R4 NIC BE14 WiFi 7 Module for BPI-R4 Wireless Tri-Band WiFi Router Board OpenWRT, MediaTek MT7995AV CPU 32 bits RISC-V MCU, with 6X 2G /5G /6GHz WiFi Antenna (WiFi7 NIC Module)

Features

• [MediaTek MT7995AV Chip] BPI-R4-NIC-BE14 Module adopted MediaTek MT7995AV CPU, supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant, support 2.4GHz 2x2, 5GHz 3x3 3ss and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, cost-effective throughput from an extended distance.
• [Support WiFi7 iPA NIC Function] Banana Pi BPI-R4 wireless three-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC (Network Interface Card). MediaTek MT7988A enables seamless Wi-Fi 7 tri-band, 2.4GHz, 5GHz and 6GHz connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC.
• [Intelligent MAC Designed] BPI-R4 NIC BE14 Wi-Fi 7 Module provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV SoC support standard-based features in the areas of security and quality of service, giving end users the greatest performance at any time and in any circumstances.
• [Support 2x 10Gbe SFP/4x Gbe] Banana Pi BPI-R4 wireless wifi router board support 2x 10Gbe SFP and 4x Gbe ethernet with 4 Port 10/100/1000Mbps Gigabit Ethernet port, also with USB3.2 port and M.2 interface, support 4G/5G signal reception and NVME SSD.Providing the fastest and most reliable network connection.
• [Application Scenarios] Banana Pi BPI-R4 Router Board can be applied to Internet service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home security Gateway, Home Automation, Nas device, Network and communication applications. 36Gbps Wi-Fi 7 Access Point/Router/Gateway
• [Wiki] Getting Started: "docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4-NIC-BE14"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
