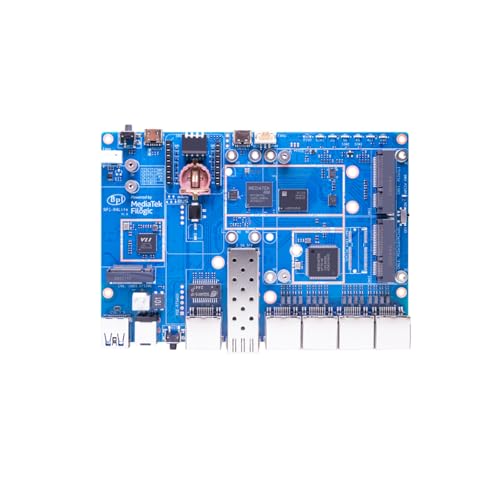

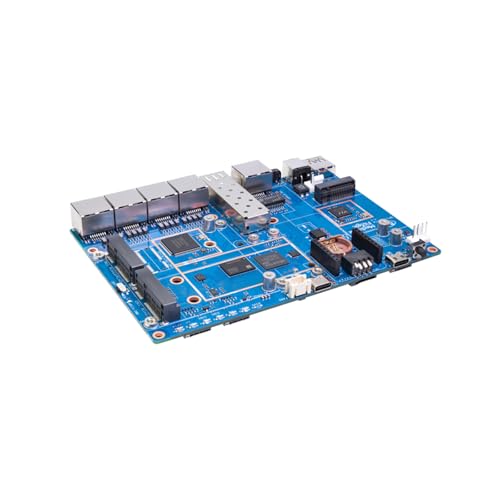

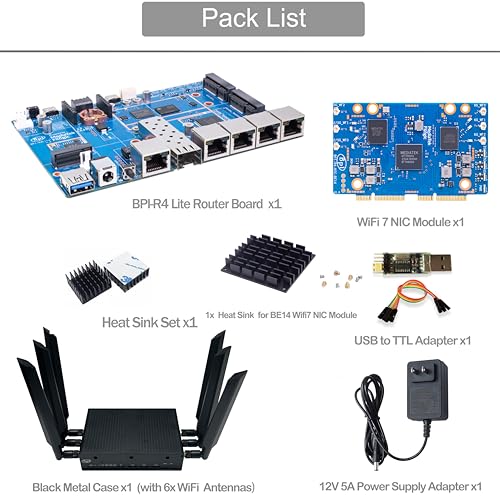

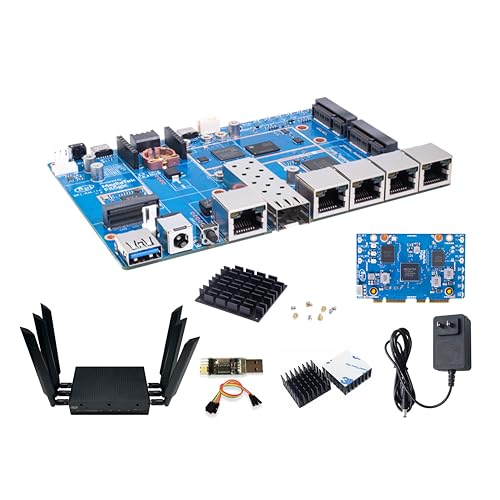

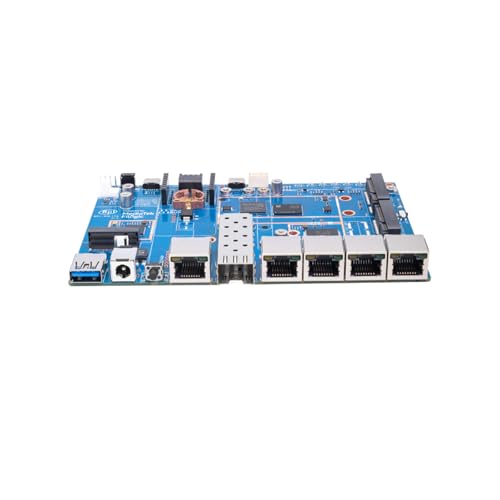

Banana Pi BPI-R4 Lite WiFi 7 Router Dev Board Kit OpenWRT - MediaTek MT7987A SoC - 2GB DDR4 RAM 8GB eMMC, 1x 2.5G SFP RJ45 WAN, 4X GbE Gigabit Ethernet for NAS Smart Home Gateway (2GB, Bundle3)

Features

• [MediaTek MT7987A SoC] Banana Pi BPI-R4 Lite router dev board kit with MediaTek MT7987A (Filogic 880) Quad-core ARM Cortex-A53 CPU design, 2GB/4GB DDR4 RAM 8GB eMMC, 256MBSPI-NAND Flash and 32MBSPI-NOR flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board.
• [MediaTek MT7995AV Wi-Fi 7 CPU] BPI-R4-NIC-BE14 is a 51x82 mm WiFi 7 module with MediaTek MT7995AV CPU, supports Wi-Fi7 technology and feature IEEE802.11a/b/g/n/ac/ax/be compliant, 2.4GHz 2x2, 5GHz 3x3 3ss, and 6GHz 3x3 3ss BE13500 Wi-Fi subsystem. The MT7995AV offers feature-rich wireless connectivity at high standards and delivers reliable, throughput from an extended distance.
• [BPI-R4-NIC-BE14 WiFi 7 Module] Banana Pi BPI-R4-NIC-BE14 Wifi7 Module support the optimized Wi-Fi baseband algorithms provide superb performance. The intelligent MAC design deploys a highly efficient offload engine and hardware data processing accelerators, which fully offload Wi-Fi task of the host processor. The MT7995AV is designed to support standard-based features in the areas of security and quality of service, giving end users the greatest performance at any time and in any circumstances.
• [2.5G SFP/RJ45 WAN and 4x Gbe LAN Port] Banana Pi BPI-R4 Lite wireless wifi 7 router board support 1x 2.5Gbe SFP, 1 2.5G RJ45 WAN and 4x 1G Gbe RJ45 LAN ethernet with 4 Port 10/100/1000 Mbps Gigabit Ethernet port, also with USB3.0 port and M.2 KEY-B interface, support 4G/5G module (EM05/RM500Q-GL/RM520N-GL) signal reception and NVME SSD.Providing the fastest and most reliable network connection.

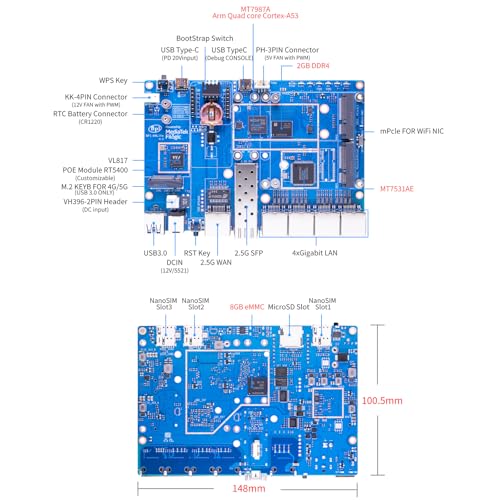

• [Rich Peripheral interfaces] Banana Pi BPI-R4 Lite wireless router board onboard 1x 2.5G SFP Optical ports, 1 2.5G RJ45 WAN (supports POE and POE module welding), 4x Gbe Gigabit LAN ports, 1x USB3.0 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 4G LTE/5G module, 1x miniPCIe slot and USB 2.0 interface, mPCle 3.0 Slot for WiFi 7 NIC Module, 1x MicroSD Slot(TF), 2x 8PIN microbus headers, some of which can be used for specific functions, including UART, I2C, SPI, and PWM.
• [Application Scenarios] Banana Pi BPI-R4 Lite router development board can be applied to Internet Service Router, 4G/5G Wireless Router, Wireless Repeater, Wifi 7 Wireless Router, Home security Gateway, Home Automation, Nas device, Network and Communication Applications. Both in wired and wireless applications.
• [Wiki] SDK Document: "docs.banana-pi.org/en/BPI-R4_Lite/BananaPi_BPI-R4_Lite"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
