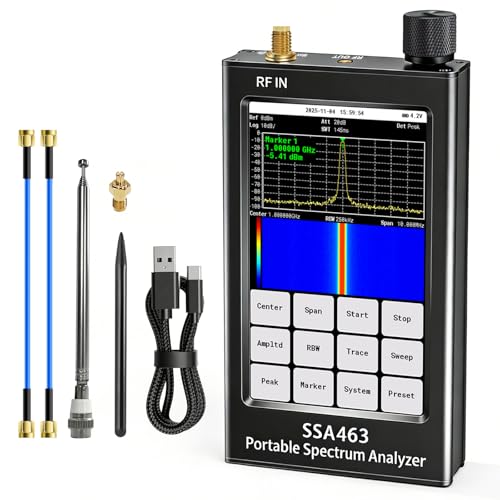

AURSINC Portable Spectrum Analyzer SSA463, 35MHz - 6.3GHz Frequency Analyzer, RF Signal Generator with 4.3 inch Touchscreen, Built-in 30dB Precision Attenuator for RF Testing, Harmonic & Signals Analysis

Features

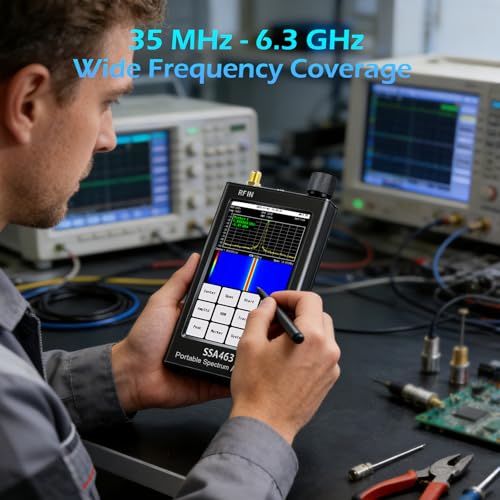

• Wide Frequency Coverage & High Dynamic Range: Covers a broad RF range from 35 MHz to 6.3 GHz, suitable for diverse wireless communication measurements. Capture faint signals easily with a dynamic range of -110 dBm to +10 dBm and a sweep speed up to 1.2 GHz/s. Deliver reliable data with a high-performance RF front end achieving a typical power measurement accuracy of 0.5 dB

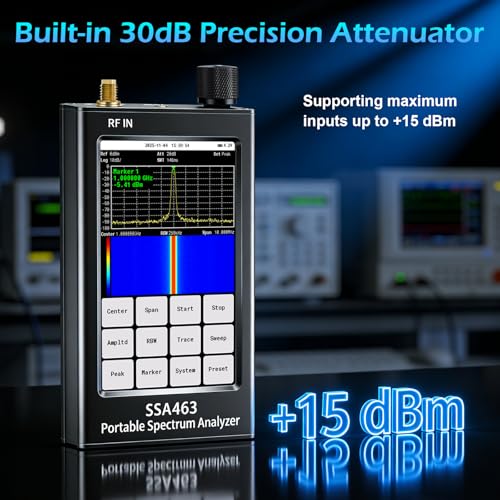

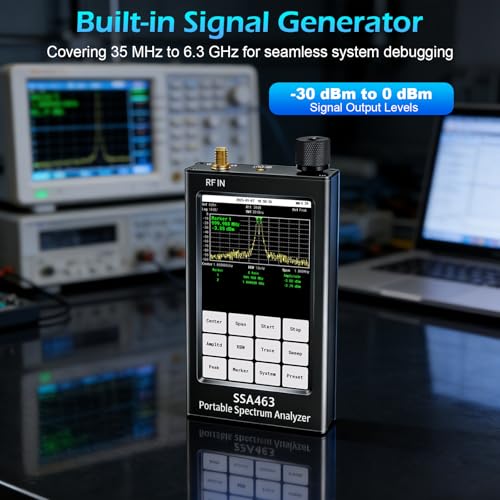

• Built-in Signal Generator & Precision Attenuator: Integrated signal generator outputs 35 MHz-6.3 GHz (-30 dBm to 0 dBm) for system debugging/verification. Equipped with a 0-30 dB 1dB-step attenuator, supporting maximum input power of +15 dBm to protect the RF front end. The SMA female RF port ensures reliable signal connection

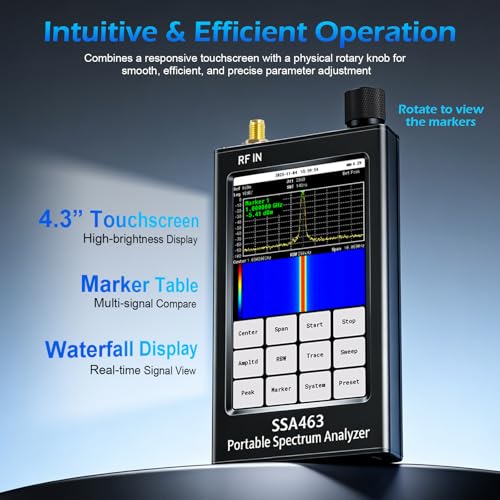

• Precise Signal Analysis: Features Marker Table (multi-point comparison), Marker (frequency/amplitude difference measurement), and Waterfall Display (time-varying signal visualization). Supports 4 trace modes (Clear/Write, Max Hold, Min Hold, Average). Identify peak signals instantly with the one-touch Peak Search and automatic marker positioning

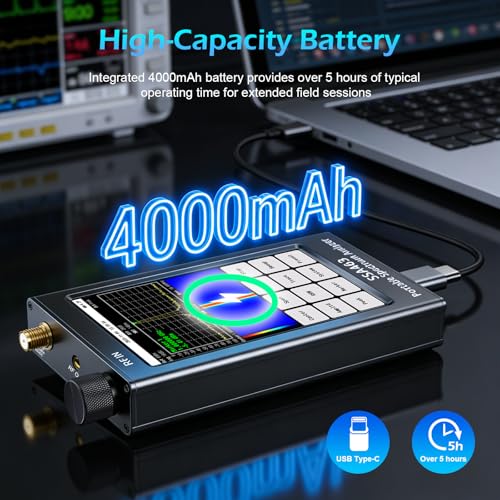

• Portable Design & Long Battery Life: The SSA463 spectrum analyzer features a 4.3-inch high-brightness IPS capacitive touchscreen (offers clear visibility outdoors) and a rotary knob for smooth control. Powered by a 4000 mAh rechargeable battery (over 5 hours of typical operating time), it features USB Type-C charging and compact dimensions (12574.322 mm) perfect for on-the-go testing

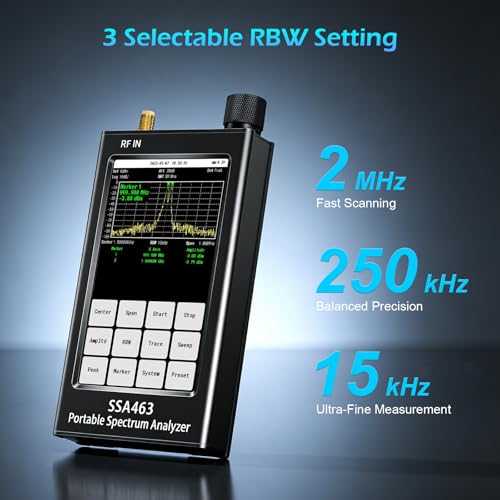

• Selectable Resolution Bandwidth (RBW): Offers three selectable RBW settings (2 MHz, 250 kHz, and 15 kHz) to balance sweep speed and frequency resolution, letting the SSA463 seamlessly adapt from fast wideband scanning to high-precision narrowband analysis. Support diverse applications including EMI pre-scanning, harmonic analysis, and spurious emission testing
