AIOMEST Digital Megohmmeter Megaohm Meter with 250V /500V /1000V Test Voltage Testing Insulation Resistance IR 0.1MΩ~2GΩ, Measure AC DC Volt Ohm, Continuity Tester, Megaohmeter w /Over-Range Indicator

Features

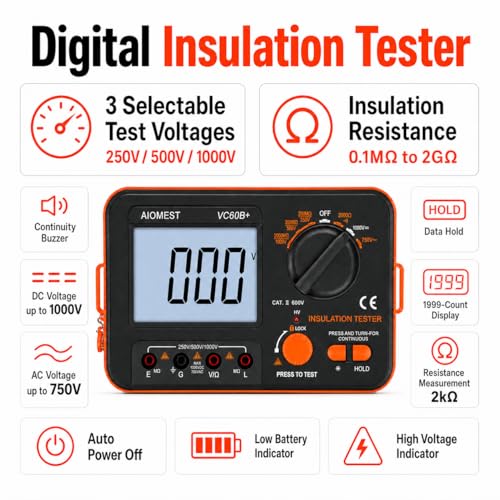

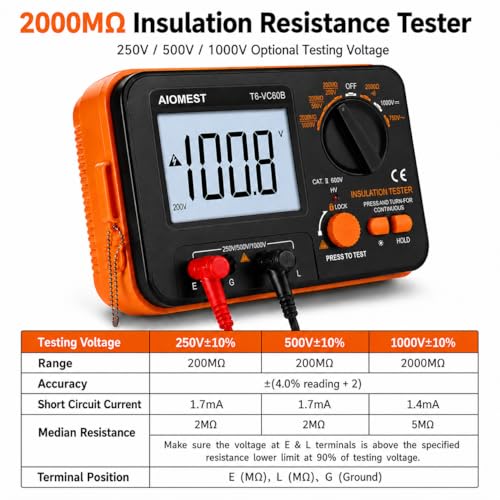

• Insulation Resistance Testing The digital insulation tester VC60B offers optional test voltages of 250V, 500V, and 1000V, making it ideal for testing insulation resistance in motor, cable, electromechanical equipment, telecom devices, and power facilities. With a measurement range from 0.1M to 2G and precision of 4%+2 digits, it ensures accurate & reliable results for both professionals and beginners.

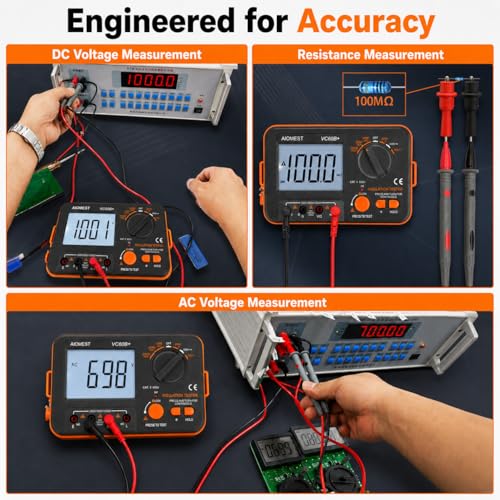

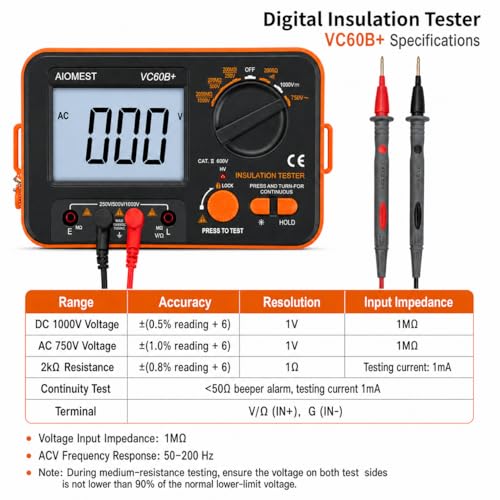

• Multi-Functional Megohmmeter Beyond insulation resistance measurement, the mega ohm tester VC60B can measure DC voltage up to 1000V and AC voltage up to 750V, both with 1V resolution and 1M input impedance. It also measures resistance up to 2K with 1 resolution and 1mA test current, and supports continuity testing with a buzzer for resistances below 50.
• Over Range Indicator Equipped with a 3 digit LCD display that shows up to "1999" and supports backlight for easy reading in low-light conditions. The over-range indicator displays "1" on the highest digit, prompting you to select a higher range. It also features a low battery indicator to ensure uninterrupted operation.
• High Sampling Rate & Data Hold With a sampling rate of approximately 3 times per second, this megohmmeter insulation tester provides quick and responsive measurements. The data hold function allows you to freeze the current reading on the display for easy recording. Please note that the data hold function is not available during insulation resistance measurement.

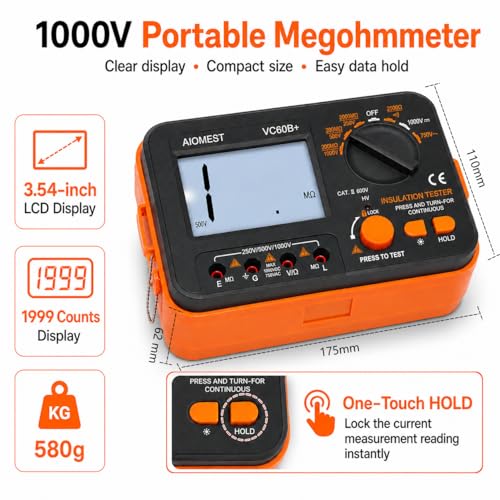

• Accessories and Warranty Compact dimensions of 176 x 116 x 63 mm and a weight of 580g make this 1000V megohmmeter easy to carry and handle in various working environments. Powered by 6x 1.5V AA batteries or an external 9V DC adapter for extended use. Portable megaohm meter comes with 2 test leads, 2 crocodile alligator clips, a 72cm detachable strap, a protective hard shell and 365days quality warranty.
