6500W Hybrid Solar Inverter 48V,Dual MPPT,300V 60A Charger,Split Phase 120V,Support Parallel Pure Sine Wave Off-Grid+On-Grid Inverter for Home Loads,Lead Acid /Lithium Battery Compatible

Features

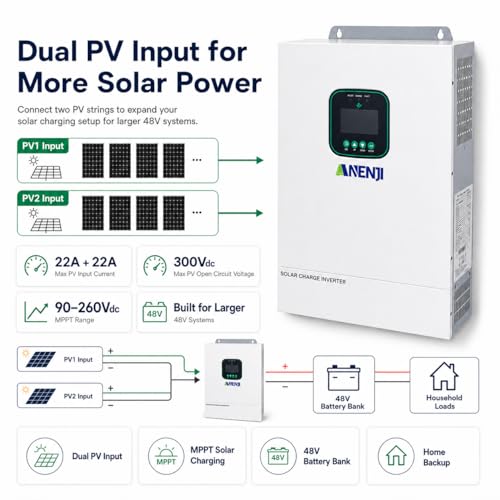

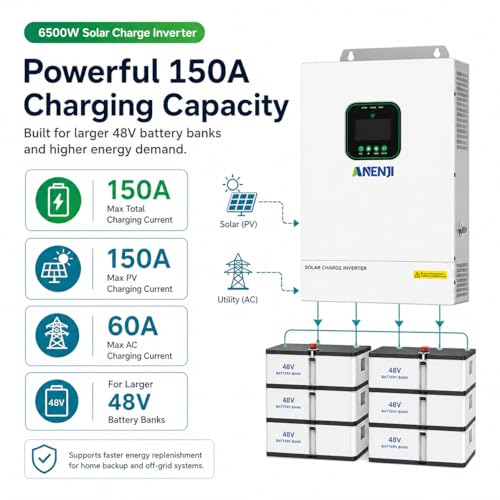

• ALL-IN-ONE SOLAR CHARGE INVERTERConverts 48V DC to 120Vac AC and is equipped with a powerful dual-channel MPPT solar charge controller. Features an LCD display and touch buttons, with optional WiFi/GPRS remote monitoring. Single AC output. Max. PV Array Power 4500W + 4500W; Max. PV Array Open Circuit Voltage 300VDC; PV Array MPPT Voltage Range 90VDC260VDC; Max. Solar Input Current per Channel 22A; Max. Solar Charge Current 150A (configurable); Max. AC Charge Current 120A; Max. Combined Charge Current (PV + AC) 150A.
• OPERATION WITH AND WITHOUT BATTERIESThe ANJ Series All-in-one Solar Charge Inverters support standard battery operation mode and simultaneous battery-less operation. The inverter can power the load directly from the PV array and/or the AC grid (Mains) without requiring a battery to be connected. (When no battery is connected, the minimum PV operating voltage must reach 80 Vdc). Furthermore, the inverter features a dual lithium battery activation function (enabled by default), which can be triggered by PV or AC mains to reactivate a dormant battery.
• VARIOUS OUTPUT MODESThe inverter offers several configurable AC output priority modes: Utility Priority (UTL): Switches to battery/inverter power only when the mains fails. Battery Priority (BAT): Primarily uses battery power, only switches to utility power when the battery is low. Solar Priority (SOL): Primarily uses PV energy, switches to utility power when solar energy is insufficient or the battery is low. Hybrid Mode (HBR): Allows for grid-tied or load-following (anti-backfeed) operation based on settings.

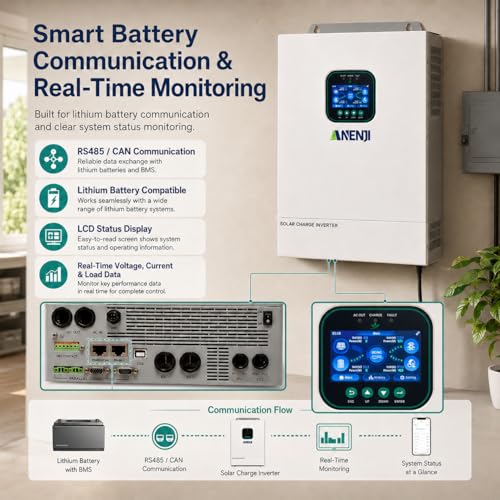

• FOUR CHARGING MODES AND COMPREHENSIVE PROTECTION FEATURESFour battery charging modes can be configured via the inverter settings: Only Solar, Mains Priority, Solar Priority, and Hybrid Charging (CSO - default). Additionally, the inverter features numerous protection functions (Over/Under Voltage, Overload, Overtemperature, Short Circuit, Reverse Polarity, etc.) for the device, battery, and connected loads. Supports communication with the BMS of various lithium battery manufacturers.
• LCD DISPLAY AND TOUCH BUTTONS FOR REAL-TIME MONITORINGThe Solar Inverter is equipped with an LCD display and touch buttons that show system data and operational status in real-time via a comprehensive interface with status icons. In case of a fault, a detailed fault code is displayed, enabling quick troubleshooting. Three LED indicators (AC OUT, CHARGE, FAULT) provide immediate visual status feedback.
