2025 Upgraded Ultra+ZS407 Spectrum Analyzer, 4.0 Inch 100kHz to 7.3GHz Handheld Frequency Analyzer with 32Gb Card, 2-in-1 Signal Generator 100kHz to 900MHz MF /HF /VHF UHF Input

Features

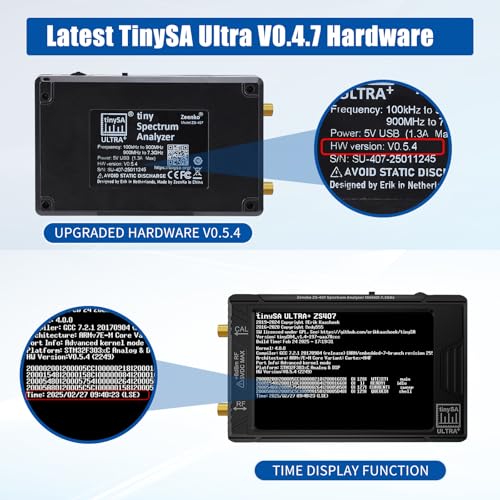

• 2025 Upgraded Ultra+ZS407ALIESTFDNO New Version Spectrum Analyzer with 4.0 inch 480 x 320 large touchscreen display, 100kHz to 7.3GHz widely measure range, with the new ESD protection function, the product has a higher anti-static level and a longer service life, and built-in 32Gb micro SD card, can directly record data to the card ,which is convenient for your data sharing and storage.

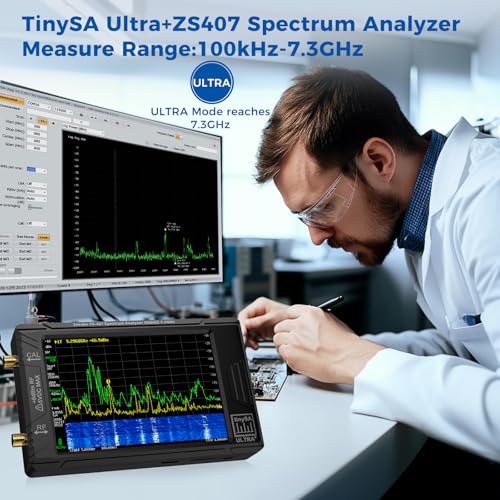

• Frequency RangeCompared to the (100kHz to 960MHz), the upgraded ULTRA has 100kHz to7.3GHz ultra-wide measuring frequency range, spectrum analyzer for 0.1-900MHz, with Ultra mode up to 0.1MHz-8GHz. Switchable resolution band pass filters for both ranges between 200Hz to 850kHz. Color display showing 450 scan points covering up to the full low or range. More accurate measurement performance, you can easily cope with measurement testes in various fields.
• 2 in 1 Multifunctional Frequency Analyzer & Signal GeneratorWhen not used as Spectrum Analyzer it can be used as Signal Generator,with sine output between 0.1-900MHz or square or dual tone output up to 6.3GHz. Built-in calibration signal generator that is used for automatic self test and low input calibration.

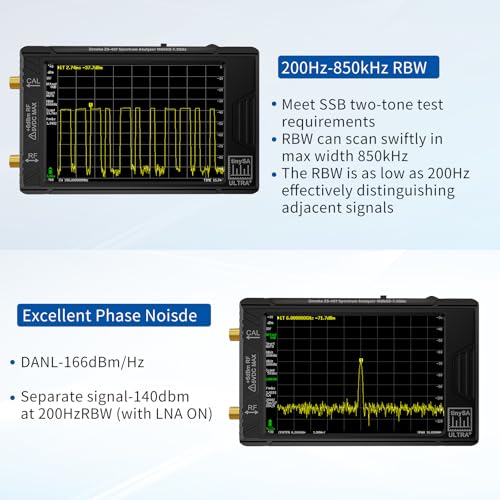

• 200Hz-850kHz RBWThe RBW is as low as 200Hz, which can effectively distinguish adjacent signals and meet the requirements of SSB dual-satellite inter-modulation test. Input Step attenuator from 0dB to 31dB (can not be used not in combination with LNA). The upgraded analyzer built-in 5000m-ah rechargeable battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to charge frequently.

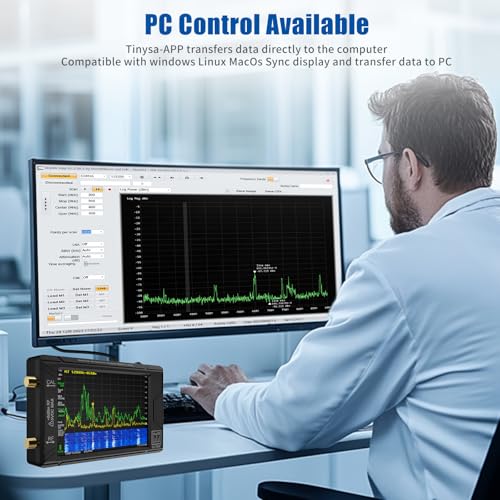

• PC ControlConnected to a PC via USB it becomes a PC controlled Spectrum Analyzer or Signal Generator. -APP transfers data directly to the computer. The USB interface implements CDC protocol and there is a large set of commands that can be invoked over the serial interface. These command can be used to perform measurements or update internal settings. The driver will install automatically after connecting to a PC. The driver for Linux is built into the kernel.

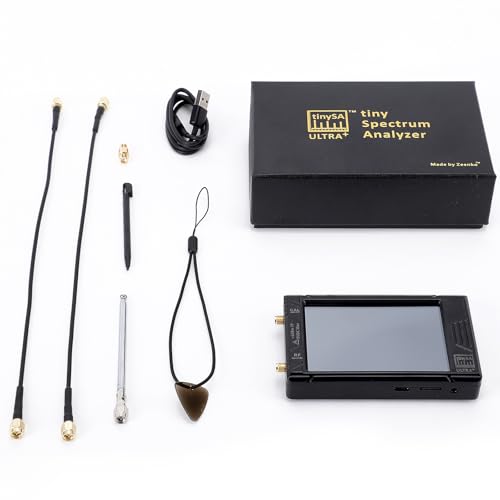

• Package List1x ULTRA Spectrum Analyzer; 2 x30cm ALSR100 SMA cables;1 x USB Type-C data cable;1 x SMA-SMA connector ;1x TLanyard and touch plectrum;1 x with SMA connector. 1 x32GB MicroSD card(plugged in the host), 1 x Touchscreen pen.
