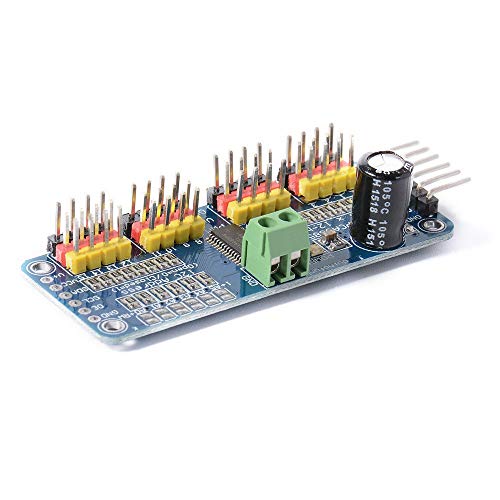

16-Channel 12-bit PWM Servo Motor Driver I2C Module(1, PCA9685)

Features

• You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output. Then you realize that your microcontroller has a limited number of PWM outputs What now?
• Using only two pins, control 16 free-running PWM outputs You can even chain up 62 breakouts to control up to 992 PWM outputs It's an i2c-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running
• It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages) 6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs Adjustable frequency PWM up to about 1.6 KHz
• 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate Configurable push-pull or open-drain output Output enable pin to quickly disable all the outputs We wrapped up this lovely chip into a breakout board with a couple nice extras Terminal block for power input (or you can use the 0.1" breakouts on the side)
• Reverse polarity protection on the terminal block input Green power-good LED 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header "Chain-able" design A spot to place a big capacitor on the V+ line (in case you need it) 330 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial Solder jumpers for the 6 address select pins
