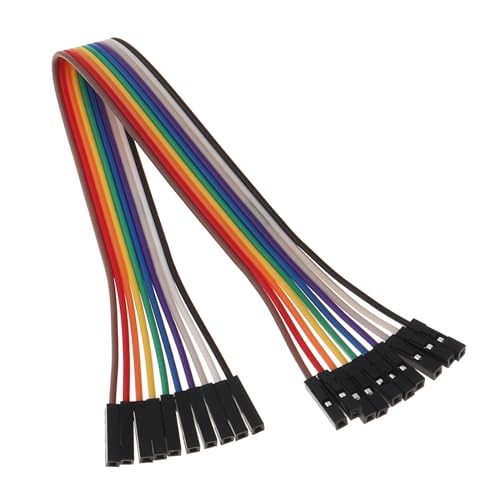

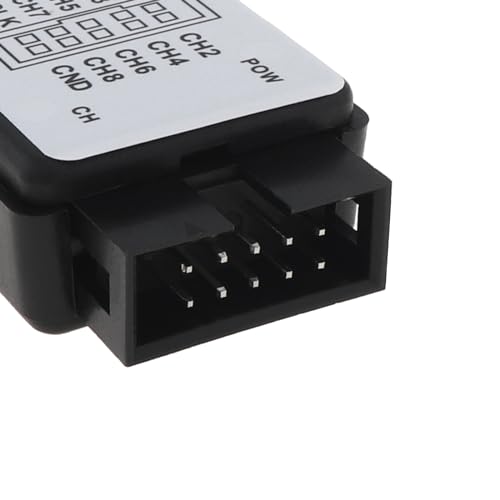

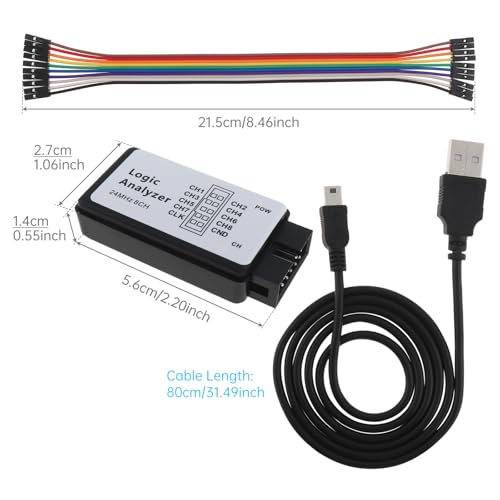

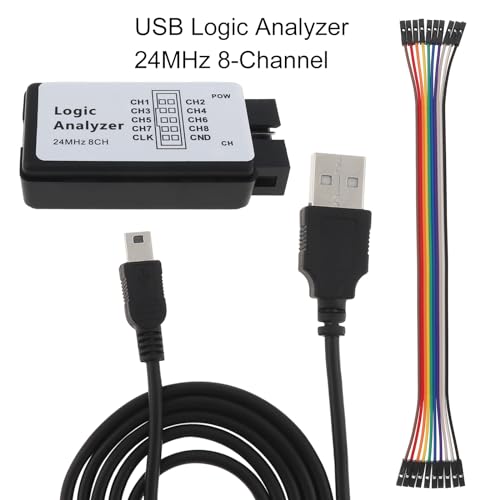

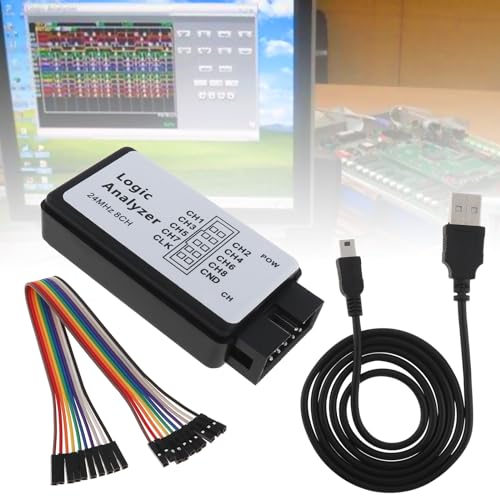

1 Set USB Logic Analyzer Device Set 8 Channel 24MHz UART IIC SPI Debug Logical Analysis Device Set with USB Cable Fit for Arduino ARM /FPGA M100 Hot

Features

• Logic analyzer collect specified signals and display them to developers through graphical or statistical methods. Developers can quickly locate errors, discover and solve problems through it, especially when analyzing time series data such as 1wire, I2C, UART, SPI, CAN, etc. The application of logic analyzer is very fast in solving problems.
• There are two very important parameters in the logic analyzer, namely sampling depth and sampling frequency. The strength of this logic analyzer lies in its ability to transmit the collected data to the computer in real-time and high-speed through USB communication, so the sampling depth depends on the memory of our computer, ensuring the procurement of sufficient data.
• A total of 8 digital channels, the logic for each channel sampling rate up to 24M/s. General applications around 10M, enough to cope with a variety of occasions.
• The voltage range is 0V and 5.5V, of which 1.5V is the voltage threshold, below 1.5V is considered low, above 1.5V is considered high.
• UART, SPI, IIC and other communication debugging, let you get twice the result with half the effort. 24M sampling rate, can automatically analyze UART, IIC, SPI and many other standard protocols.
